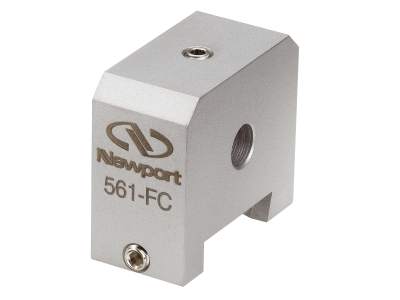

Fiber Chuck Holder, 0.25 inch, 561 Series

Fiber Chuck Holder, 0.25 inch, 561 Series

Model: 561-FC

$166

In Stock

Compare

Add to List

Product Series Overview

ULTRAlign Fiber Alignment Accessories

The 561-FC Fiber Chuck Holder is designed to attach 0.25 inch (6.35 mm) diameter fiber chucks to 561 Series stages for alignment.

Specifications

Technical Specs

Material

Steel

Material

Steel

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

561-FC-S (75.7 kB, PDF)

Other

561-FC_RoHS2021.pdf (684.9 kB, PDF)
