Lens Mount, Gradient Index (GRIN), 561 Series
Lens Mount, Gradient Index (GRIN), 561 Series
Model: 561-GR
Product Series Overview

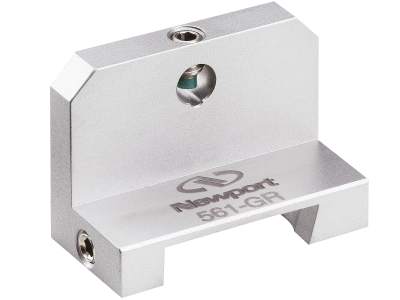

ULTRAlign Fiber Alignment AccessoriesThe 561-GR Gradient Index (GRIN) Lens Mount, mounts GRIN lenses up to 4.5 mm diameter to a 561 Series stage. Lenses held in a V-groove with a nylon-tipped setscrew.
Resources & Downloads
2D Product Drawings
561-GR DWG(46.1 kB, PDF)
Other
MKS EU ROHS3 - 561-GR(222.6 kB, PDF)
