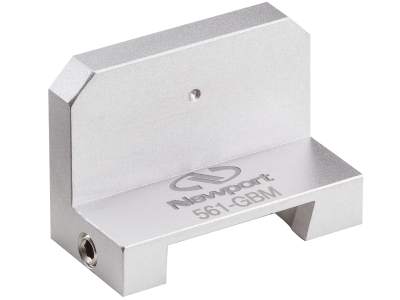

Blank, GRIN Lens Mount, 561 Series

ULTRAlign Fiber Alignment Accessories

The 561-GBM Blank GRIN lens mount can be machined to create custom component holders to mount on the 561/562 rail.

Specifications

Technical Specs

Material
Steel

Material
Steel

Resources & Downloads

2D Product Drawings

561-GBM-S(70.7 kB, PDF)

Other

MKS EU ROHS3 - 561-GBM(222.6 kB, PDF)
