| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|

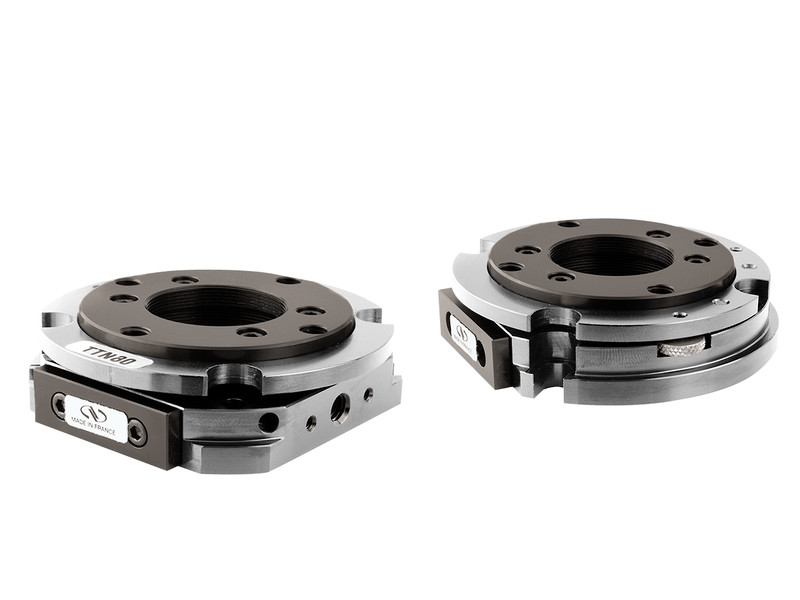

M-TTN80 Tilt Platform, Two-Axis, ±2° Tilt and Tip Range, 20 N Load, M4 and M6 |
3 Weeks
|
$1,071 |
|
|||
|
|
Tilt Platform, Two-Axis, ±2° Tilt and Tip Range, 4.5 lb. Load, 8-32 and 1/4-20
$1,071
In Stock
|
TTN80 Tilt Platform, Two-Axis, ±2° Tilt and Tip Range, 4.5 lb. Load, 8-32 and 1/4-20 |
In Stock
|
$1,071 |
|
| Models |
|
|
|
|---|---|---|---|
| Tilt | ±2° | ±2° | |
| Tip | ±2° | ±2° | |
| Sensitivity | 4 arc sec | 4 arc sec | |
| Load Capacity | 20 N | 20 N | |
| Material | Steel | Steel | |
| Included Actuators | Thumbwheels | Thumbwheels | |
| Thread Type | 8-32 and 1/4-20 | M4 and M6 |

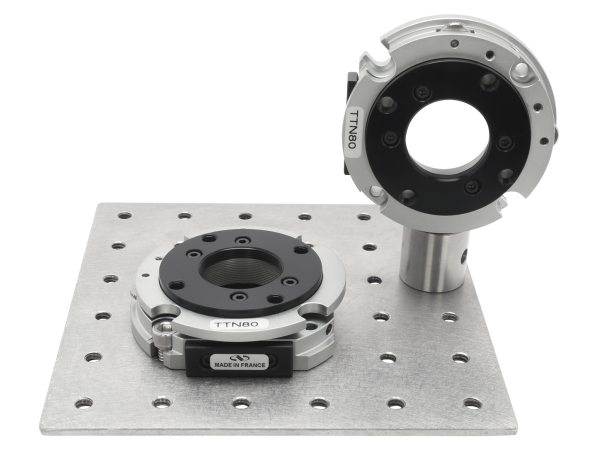

The TTN80 Tilt Platform can be mounted horizontally to a bread board for adjusting parallelism between a base plate and top plate or post mounted vertically for adjusting optical elements.

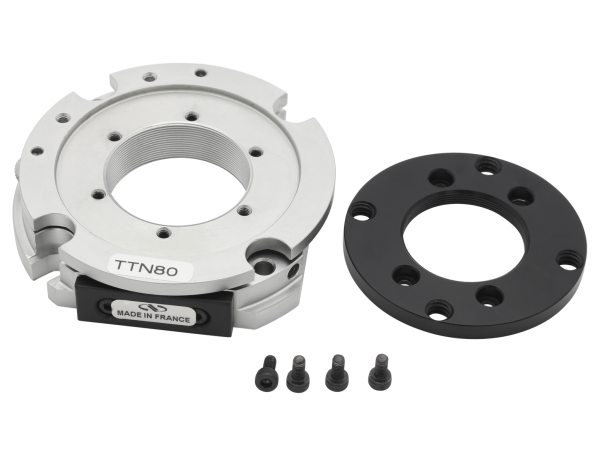

Each TTN80 includes an threaded aperture adaptor having M30x0.75 threads. This adaptor can be used for mounting optic barrels
