Tilt Platform, Two-Axis, ±2° Tilt and Tip Range, 4.5 lb. Load, 8-32 and 1/4-20
Tilt Platform, Two-Axis, ±2° Tilt and Tip Range, 4.5 lb. Load, 8-32 and 1/4-20
Model: TTN80
Product Series Overview

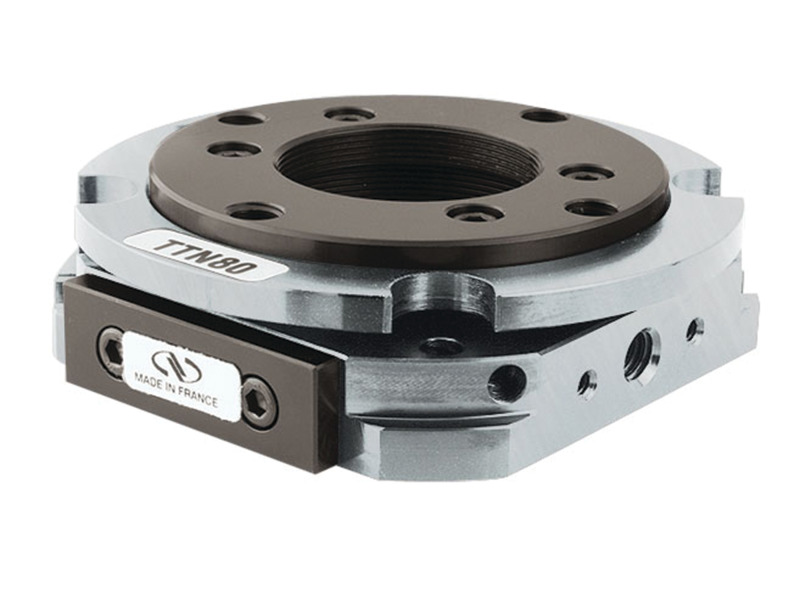

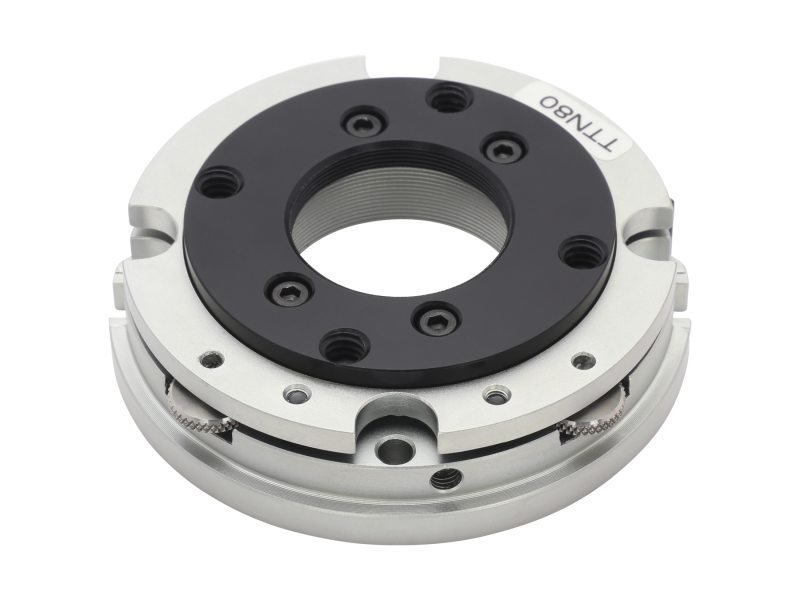

Two-Axis Steel Tilt Platforms with ApertureThe TTN80 Tilt Platform is a compact module that provide sensitive adjustment of parallelism between a base plate and top plate or optical mount. ±2° tip and tilt are achieved without altering the height of the mount along the central axis. These mounts are adjusted by small thumbwheels that maintain an overall compact form. 20 N Load Capacity
