Tilt Platform, Two-Axis, ±2° Tilt and Tip Range, 20 N Load, M4 and M6
Tilt Platform, Two-Axis, ±2° Tilt and Tip Range, 20 N Load, M4 and M6
Model: M-TTN80
Product Series Overview

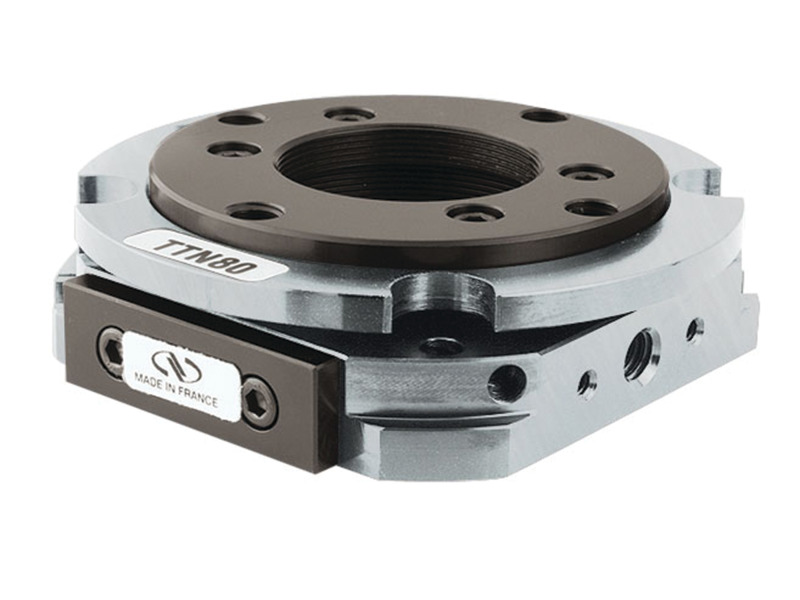

Two-Axis Steel Tilt Platforms with ApertureThe M-TTN80 Metric Tilt Platform is a compact module that provide sensitive adjustment of parallelism between a base plate and top plate or optical mount. ±2° tip and tilt are achieved without altering the height of the mount along the central axis. These mounts are adjusted by small thumbwheels that maintain an overall compact form. 20 N Load Capacity
Resources & Downloads
2D Product Drawings
TTN80 DWG-S(119.1 kB, PDF)
Other
M-TTN80 RoHS Certificate(282.9 kB, PDF)
Related Products
Similar
