The LDM-4405 Laser Diode Mounting Fixture provides a compact, easy to use solution for mounting and temperature controlling TO-Can packaged laser diodes. The fixture accommodates 5.6mm and 9mm TO-Can laser diodes with 3 or 4 pins. A wide temperature control range is accomplished by an integrated thermoelectric module which provides for an active control range of 10 to 85°C with heat loads up to 500 mW.

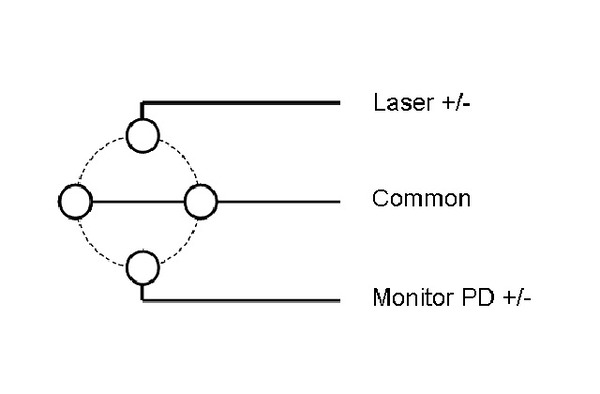

Through the use of the rear panel switches, the LDM-4405 can be adjusted to match most 3-pin and 4-pin TO-Can laser diode configurations, with the socket pin configuration shown on the right. The LD and PD sockets can be toggled to either anode and cathode position, with a two common pin sockets in-between. Please contact our Newport sales team for any questions you may have on laser diode compatibility, or choose between our selection of TO-Can diodes on Newport.com.

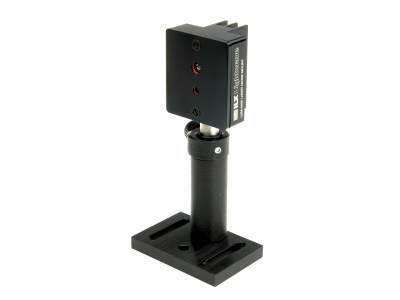

The fixture is compatible with both imperial and metric optical table post mounts. The compact profile of the LDM-4405 provides for convenient mounting on an optics table and the unobstructed access to the laser window allows space for aligning collimating optics.

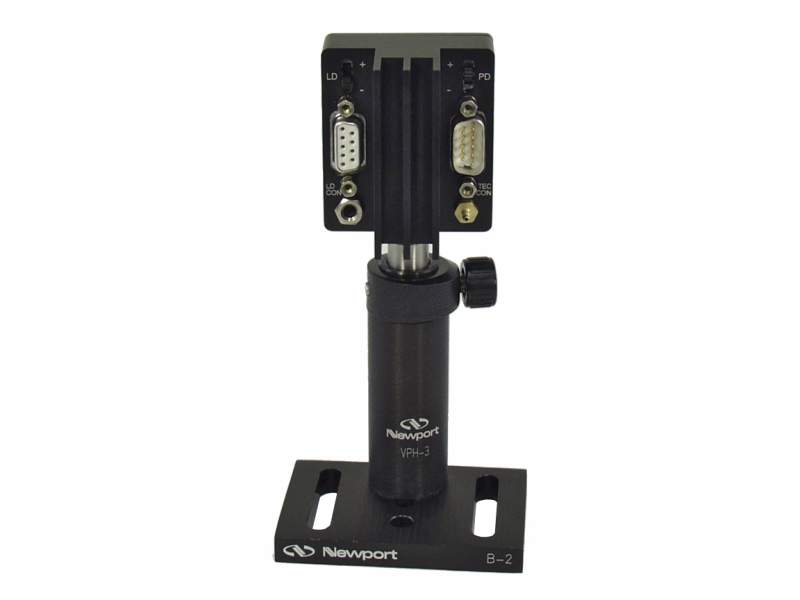

Standard interconnect cables allow for quickly setting up the LDM-4405 with any ILX Lightwave current source or temperature controller. All connections including electrical and nitrogen purge are conveniently located on the back of the LDM-4405. Two switches allow the user to quickly configure the LDM-4405 for most TO-Can pin outs.
When the LDM-4405 TO-Can Mount is paired with the
A nitrogen purge system is incorporated to keep the laser free from condensation when operated in a humid environment.
