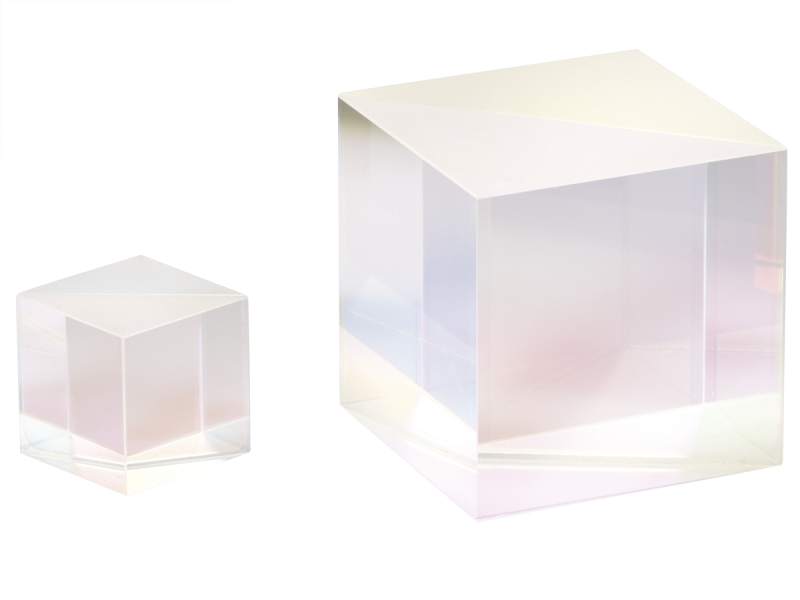

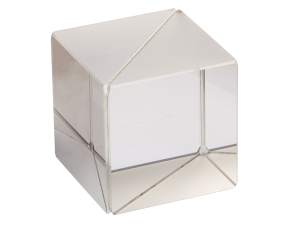

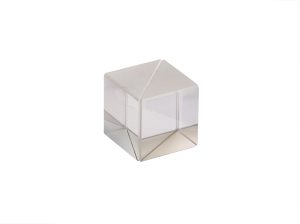

Laser Line Polarizing Cube Beamsplitters

Laser line polarizing cube beamsplitters provide efficient, narrowband polarization for higher power lasers. Their extinction ratio is better than 1000:1, and they are recommended for use in pulsed laser systems and for purifying the polarization state in multimode lasers.

Optimized for higher-power lasers
Extinction Ratio > 1000:1 for laser line beamsplitters
Extinction Ratio > 100:1 for UV laser line beamsplitters
Low wavefront distortion

See All Features

Show Filters:

Showing 10 of 23 total products

Compatibility:

Description	Compatibility	Size	Wavelength Range	Extinction Ratio	Material	Avail.	Price
05SC16PC.21UV Cube Beam Splitter, Polarizing, 12.7 mm, 248 nm Laser Line	UNIVERSAL	12.7 x 12.7 x 12.7 mm	248 nm	T_p/T_s >100:1	UV Grade Fused Silica	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$982
05SC16PC.22UV Cube Beam Splitter, Polarizing, 12.7 mm, 266 nm Laser Line	UNIVERSAL	12.7 x 12.7 x 12.7 mm	266 nm	T_p/T_s >100:1	UV Grade Fused Silica	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$982
05SC16PC.24UV Cube Beam Splitter, Polarizing, 12.7 mm, 351-355 nm Laser Line	UNIVERSAL	12.7 x 12.7 x 12.7 mm	351-355 nm	T_p/T_s >100:1	UV Grade Fused Silica	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$982
05BC16PC.13Cube Beamsplitter, Polarizing, 12.7 mm, 405 nm Laser Line	UNIVERSAL	12.7 x 12.7 x 12.7 mm	405 nm	T_p/T_s >500:1	Grade A N-BK7	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$459
05BC16PC.1Cube Beamsplitter, Polarizing, 12.7 mm, 441-458 nm Laser Line	UNIVERSAL	12.7 x 12.7 x 12.7 mm	441-458 nm	T_p/T_s >500:1	Grade A N-BK7	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$317
05BC16PC.2Cube Beamsplitter, Polarizing, 12.7 mm, 488-514.5 nm Laser Line	UNIVERSAL	12.7 x 12.7 x 12.7 mm	488-514.5 nm	T_p/T_s >500:1	Grade A N-BK7	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$317
05BC16PC.3Cube Beamsplitter, Polarizing, 12.7 mm, 532 nm Laser Line	UNIVERSAL	12.7 x 12.7 x 12.7 mm	532 nm	T_p/T_s >1,000:1	Grade A N-BK7	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$317
05BC16PC.4Cube Beamsplitter, Polarizing, 12.7 mm, 632.8 nm Laser Line	UNIVERSAL	12.7 x 12.7 x 12.7 mm	632.8 nm	T_p/T_s >1,000:1	Grade A N-BK7	In Stock	$317
05BC16PC.12Cube Beamsplitter, Polarizing, 12.7mm, 670 nm Laser Line	UNIVERSAL	12.7 x 12.7 x 12.7 mm	670 nm	T_p/T_s >1,000:1	Grade A N-BK7	In Stock	$317
05BC16PC.6Cube Beamsplitter, Polarizing, 12.7 mm, 780 nm Laser Line	UNIVERSAL	12.7 x 12.7 x 12.7 mm	780 nm	T_p/T_s >1,000:1	Grade A N-BK7	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$317

Show All

Mounting Options


Mount Type	Platform Mount		Prism Stage
Models			PO46-50 Series
Accessories	Requires	Included &	–	–	Optional
Adjustments	2-axis		3-axis
Compatible Cube Sizes	5.0-50.8 mm	5.0-25.4 mm		6.35-25.4 mm	12.7-25.4 mm
Special Features	–	–	Table Mount	–	Gimbal	Gimbal, AegisQube™ System Compatibility


Mount Type	Cube Mount
Models
Accessories	–	–	–	–	Optional
Adjustments	Fixed¹				1-axis
Compatible Cube Sizes	25.4 mm	12.7, 25.4 mm		25.4 mm	12.7, 25.4 mm
Special Features	A-Line™ System Compatibility	Lens or Rotation Mount Compatibility	OpticsCage+™ or Mirror Mount Compatibility	OpticsCage+™ System Compatibility

¹Adjustments are added to the CH and UPA-CH series cube mounts when being held by a kinematic or rotary mount.

Specifications

Shape
Cube
Coating Type
Laser line polarizing
Antireflection Coating
Multilayer broadband dielectric
Orientation
To avoid damage, beam should enter prism marked with a dot
Reflected Beam Deviation
90° ±5 arc min
Transmitted Beam Deviation
≤5 arc min
Wavefront Distortion
≤λ/4 at 632.8 nm over the clear aperture

Surface Quality
20-10 scratch-dig
Surface Flatness
≤λ/4 at 632.8 nm
Clear Aperture
>80% of central dimension
Size Tolerance
±0.254 mm
Operating Temperature Range
-50 to 80°C
Durability
MIL-C-675C, moderate abrasion million cycles
Cleaning
See How to Clean Optics

Features

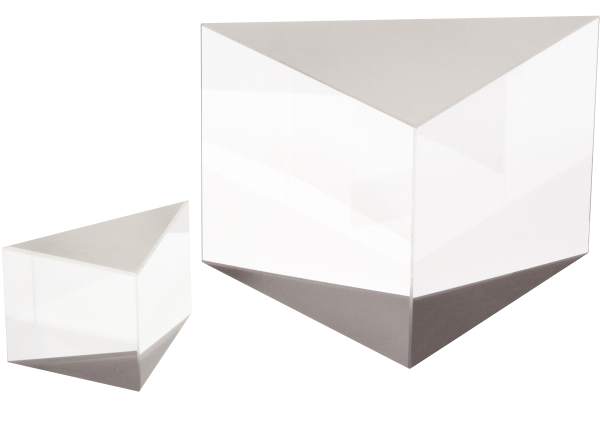

Constructed With Pair of Right-Angle Prisms

These beamsplitters consist of a pair of precision right-angle prisms carefully cemented or optically contacted (models with PC.21, PC.22, and PC.24 coating) together to minimize wavefront distortion. The hypotenuse of one of the prisms is coated with a multilayer dielectric polarizing beamsplitter coating optimized for laser lines. The four faces are antireflection coated with a multilayer dielectric coating to minimize surface reflection losses.

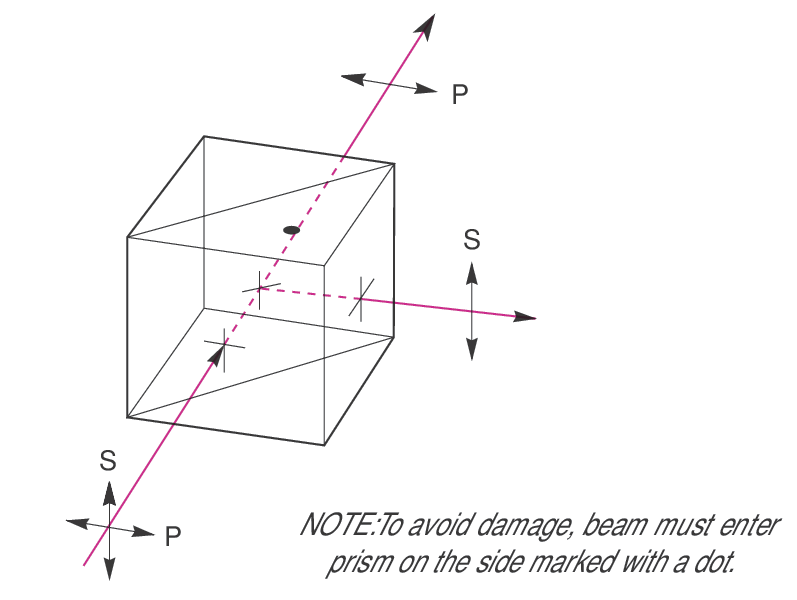

Proper Orientation

Cube beamsplitters are formed by cementing two right angle prisms together. One of the two prisms has the partially reflective metal-dielectric coating applied to its hypotenuse. In Newport's cube beamsplitters the coated prism is marked with a visible dot. Incident light should enter the prism with the coated hypotenuse in order to minimize power passing through the optical cement. Alternatively, a beam entering via the uncoated prism results in more than triple the fluence in the cement (the transmitted component, plus a double pass by the reflected component). With higher power beams this can result in degradation of the cement.

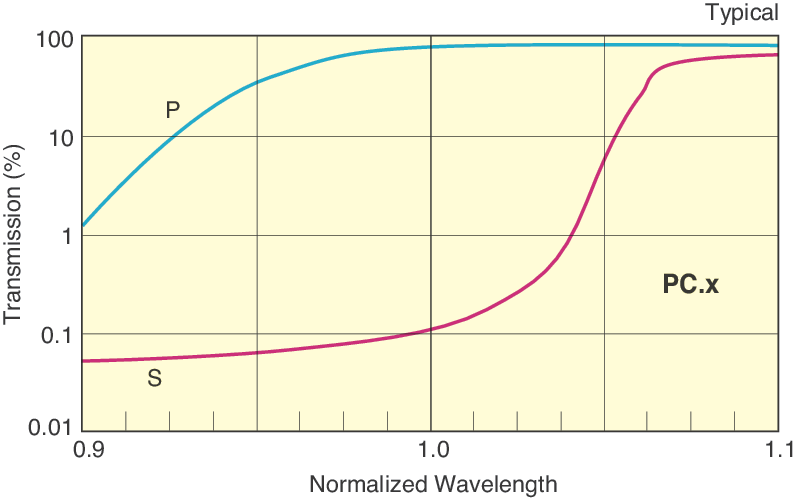

High Polarization Extinction Ratio

An unpolarized beam is split into two orthogonal, linearly polarized components. P-polarized light is transmitted, while s-polarized light is reflected, both with negligible absorption. The extinction ratio is better than 1000:1 for beamsplitter made with N-BK7 glass, and better than 100:1 for beamsplitter made with UV fused silica. These cubes are recommended for use in pulsed laser systems and for purifying polarization in multimode, high-power lasers. Multilayer laser line coatings are offered for 13 laser wavelengths.
