Cube Beamsplitter Holders
Cube Beamsplitter Holders
These cube beam splitter adaptors can be used as stand-alone fixed mounts, but are designed to work with LP-Series Lens Mounts. Their modular design allows optics that are commonly used with beamsplitters, such as wave plates, polarizers, filters, lenses, and mirrors to be quickly attached to create variable attenuators, optical isolators or T-splitters.
- Adapt optical cubes to Newport's lens and rotation mounts
- Integrate cube beamsplitters & round optics into a single unit
- Post-mountable for simple fixed Cube mounting See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | BSP025Cube Beamsplitter Holder, 0.25 in. Cube, 1.035-40 Threaded Mounts | In Stock | ||||
 | BSP05Cube Beamsplitter Holder, 0.5 in. Cube, 1.035-40 Threaded Mounts | 4 Weeks | ||||
 | CH-0.5Cube Beamsplitter Holder, 0.5 in. Cubes, 1.063-20 Threaded Mounts | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | CH-1Cube Beamsplitter Holder, 1.0 in. Cubes, 2.063-20 Threaded Mounts | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Features
Build Useful Optical Assemblies
The modular design of the CH Series cube mounts allows additional optics that are commonly used with beamsplitters, such as wave plates, polarizers, filters, lenses, and mirrors to be quickly attached to create variable attenuators, optical isolators, or T-splitters.
These cube beam splitter adaptors are also compatible with LP-A Series precision multi-axis lens positioners and a variety of rotation stages with matching threads, which include high-performance 481-A, RSP, and low-profile RS65 Series.
LP-2A with CH-1
Integrate Standard Optics with Ease
The CH-1 Beamsplitter Cube Holder’s aluminum housing contains an internal 25.4 mm beamsplitter holder (beamsplitter not included). Ports allow optics to be positioned in beam entry and exit paths. Standard 1 in. (25.4 mm) optics may be quickly attached to Cube Holder ports using Newport LPLH-1T optic holders, which attach to the side ports.
Optical Isolator Application
T-Splitter Application
Variable Attenuator Application
Quarter and Half Inch Cube Beamsplitter Holders
LP6X-1H with BSP05
Lens Tube System Application
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

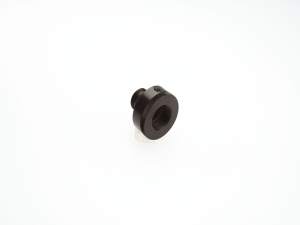

 | CH-PORTOptic Adaptor, CH-0.5 | In Stock | ||||
 | LPMH-1Objective Lens Holder, RMS, 1.438-20 Thread, For LP-1A Series | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | LPLH-1TOptic Holder, 1.0 inch Diameter, 1.438-20 Thread, For LP-1A Series | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | MLH-0.5Rotation Lens Mount Adaptor, 0.50 in. Diameter to 0.75 in. Mount | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
