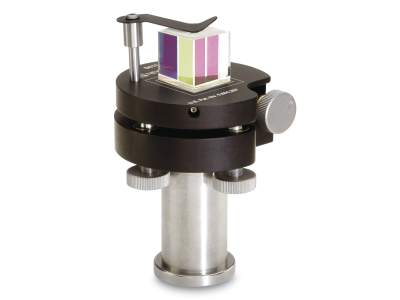

Quad-Path Prism Mounts
Quad-Path Prism Mounts
These patented prism mounts provide clear access to all four beam paths making them ideal for creating interferometers.
- Corner clamp allows quad-path beam access
- Full range of motion in all three axes available simultaneously
- Press-fit clamp means optic mounting without tools
- Intuitive and affordable design
- Hold 0.25 to 1.0 inch prisms See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 9411Prism Mount, 0.25 to 1.00 in., ±5 °, 8-32 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
| 9411-MPrism Mount, 0.25 to 1.00 in., ±5 °, M4 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

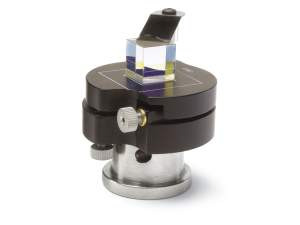

 | 9481Prism Mount, Pint-Sized, 0.25 to 1.00 in., ±3.5°, 8-32 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
| 9481-MPrism Mount, Pint-Sized, 0.25 to 1.00 in., ±3.5°, M4 | FREE 2-day shipping on thousands of products on Newport.com Learn More |
Features

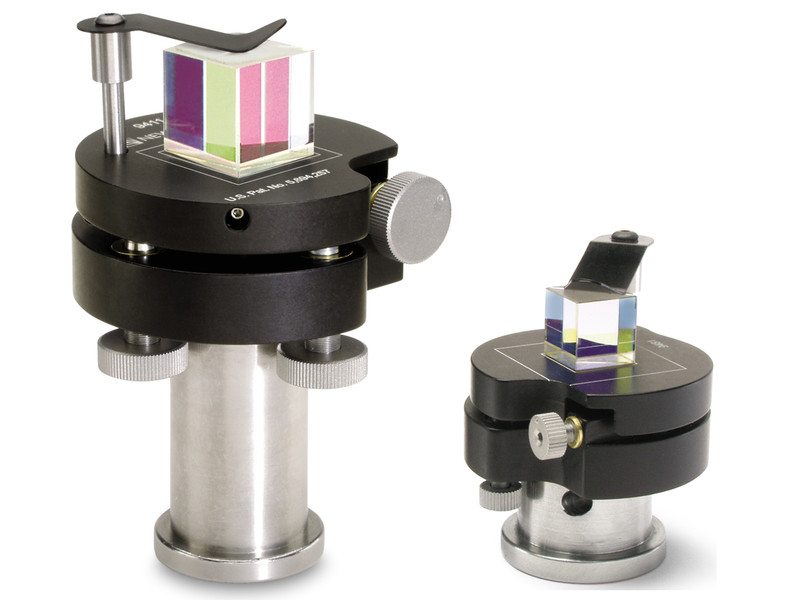

Standard and Pint-Sized Versions
We offer both a standard version and a compact pint-sized version with less adjustment range. Both can be used with 0.25 to 1.0 inch prisms.

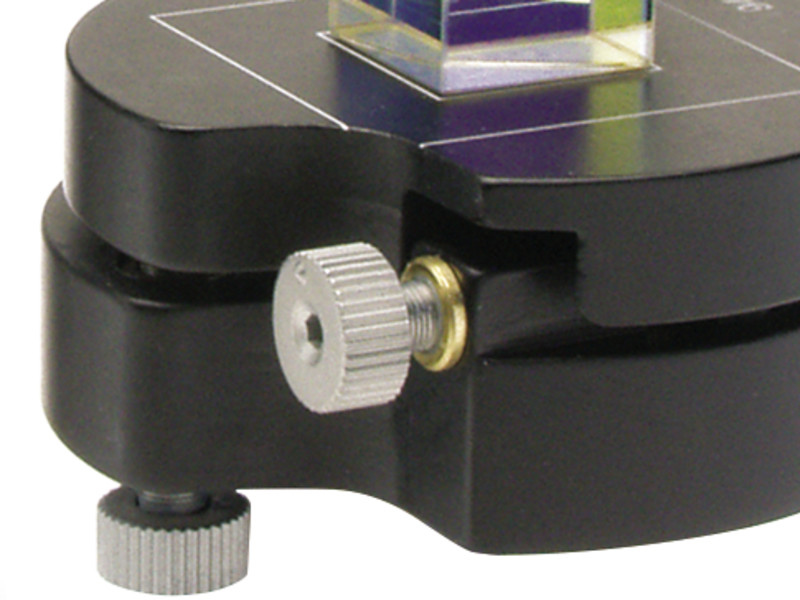

Thread-matched Adjustment Screws
The adjustment screws used on the Quad-Path prism mounts are matched screw/bushing sets to ensure alignments that are stable, even after being adjusted.

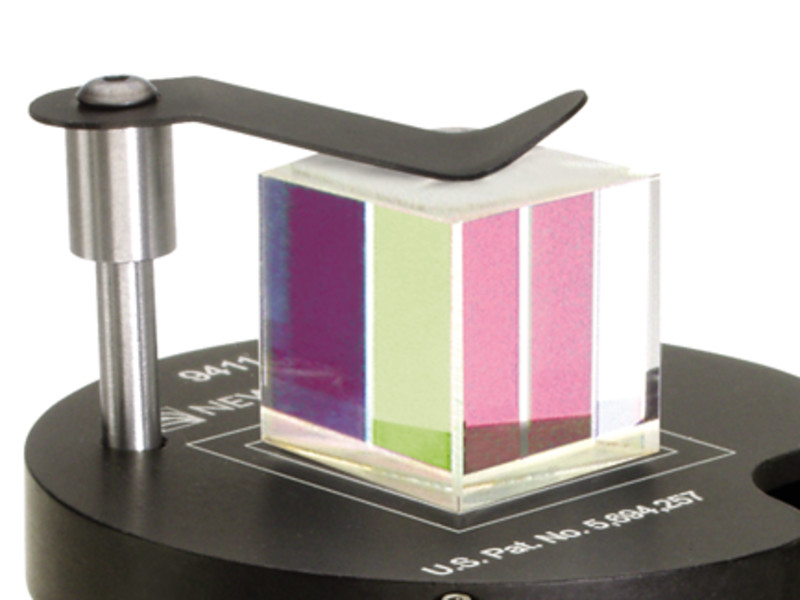

Press-on Prism Clamp
The innovative press-on optic spring clamp provides a firm hold on the prism without the need for installation tools.
Easy To Use
Watch this short video to see how easy it is to mount a prism or cube beam splitter on to this mount.
