Prism Mount, Pint-Sized, 0.25 to 1.00 in., ±3.5°, M4

Quad-Path Prism Mounts

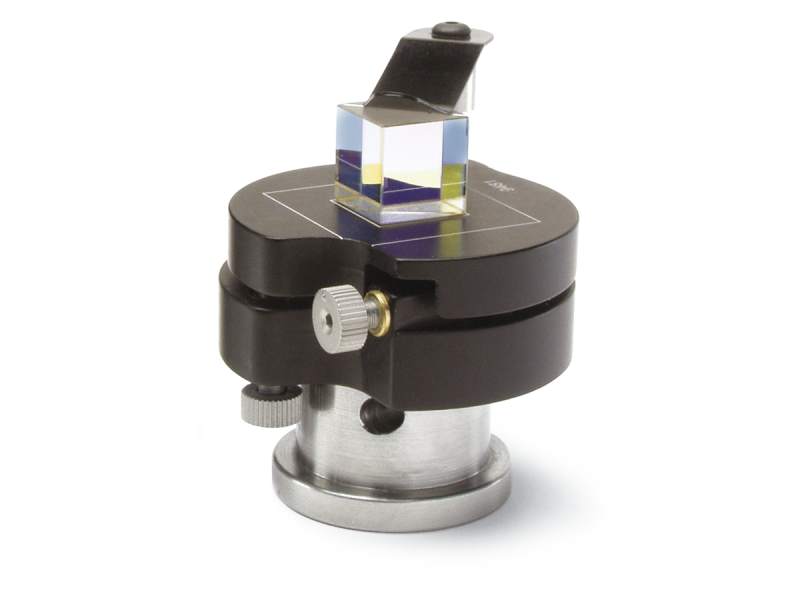

The 9481-M Pint-Size Prism Mount is for more specialized applications. The Model 9481 prism mount fits optics up to 1 in. tall and is perfect for holding prisms or beamsplitter cubes. M4 Thread.

Specifications

Technical Specs

Adjustment Type
Adjustment Screw
Angular Range
±3.5°
Sensitivity
12 arc sec
Load Capacity
4 N

Mounting
M4 Thd.

Adjustment Type
Adjustment Screw
Angular Range
±3.5°
Sensitivity
12 arc sec
Load Capacity
4 N

Mounting
M4 Thd.

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

9481b-Drawing(116.4 kB, PDF)
