Platform Optical Mount, Performa, 1.0 in., 2 Knob Adjustment, M4
Platform Optical Mount, Performa, 1.0 in., 2 Knob Adjustment, M4
Model: M-P100-P
Product Series Overview

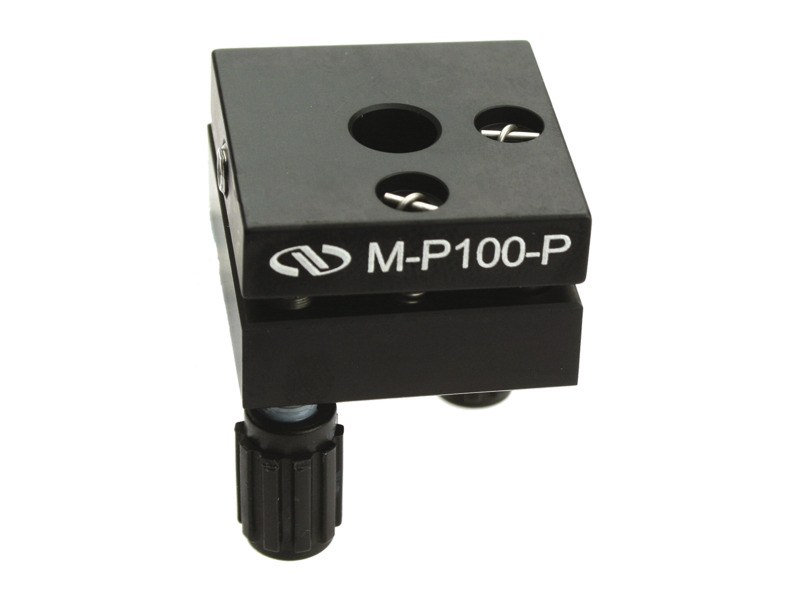

Miniature Platform Mirror MountsThe M-P100-P Miniature Metric Platform Optical Mount is ideal for general laboratory or industrial applications requiring a compact, robust, kinematic design. Platform mounts have the size advantage, over aperture mounts, of being able to hold mirrors which are as large as or larger than the actual mount itself. This 1 inch (25.4 mm) version holds mounted mirrors, prisms, or cube beamsplitters. Two precision 100-TPI adjustment screws with knob provide ±6° adjustment range. An optional hex-key can be used to discourage unwanted tampering. when used with the optional Mirror Holders UPA.5, UPA.75, UPA, provides a stable mounting platform for 0.5 to 1 inch (12.7 to 25.4 mm) diameter mirrors. The P100-P can be post mounted as a horizontal tip/tilt platform using the M4 threaded hole in the back plate.
