PO46BD-50
3 Axis Tilt & Rotation Stage, ±2.5°, Micrometers
$1,428
In Stock
 PO46BD-50 3 Axis Tilt & Rotation Stage, ±2.5°, Micrometers
In Stock
 $1,428
M-PO46BD-50
3 Axis Tilt & Rotation Stage, ±2.5°, Micrometer, Metric
$1,428
In Stock
 M-PO46BD-50 3 Axis Tilt & Rotation Stage, ±2.5°, Micrometer, Metric
In Stock
 $1,428
PO46BL-50
3 Axis Tilt & Rotation Stage, ±2.5°, Locking Adjustment Screws
$832
In Stock
 PO46BL-50 3 Axis Tilt & Rotation Stage, ±2.5°, Locking Adjustment Screws
In Stock
 $832
M-PO46BL-50
3 Axis Tilt & Rotation Stage, ±2.5°, Locking Screws, Metric
$832
In Stock
 M-PO46BL-50 3 Axis Tilt & Rotation Stage, ±2.5°, Locking Screws, Metric
In Stock
 $832
PO46N-50
3 Axis Tilt & Rotation Stage, ±2.5°, Adjustment Screws
$554
In Stock
 PO46N-50 3 Axis Tilt & Rotation Stage, ±2.5°, Adjustment Screws
In Stock
 $554
M-PO46N-50
3 Axis Tilt & Rotation Stage,±2.5°, Adjustment Screws, Metric
$554
In Stock
 M-PO46N-50 3 Axis Tilt & Rotation Stage,±2.5°, Adjustment Screws, Metric
In Stock
 $554

Specifications

  • Angular Range
    ±2.5°
  • Load Capacity
    50 N
  • Mounting
    Base Plate

Features

Two Independent Tilt Adjustments Plus Rotation

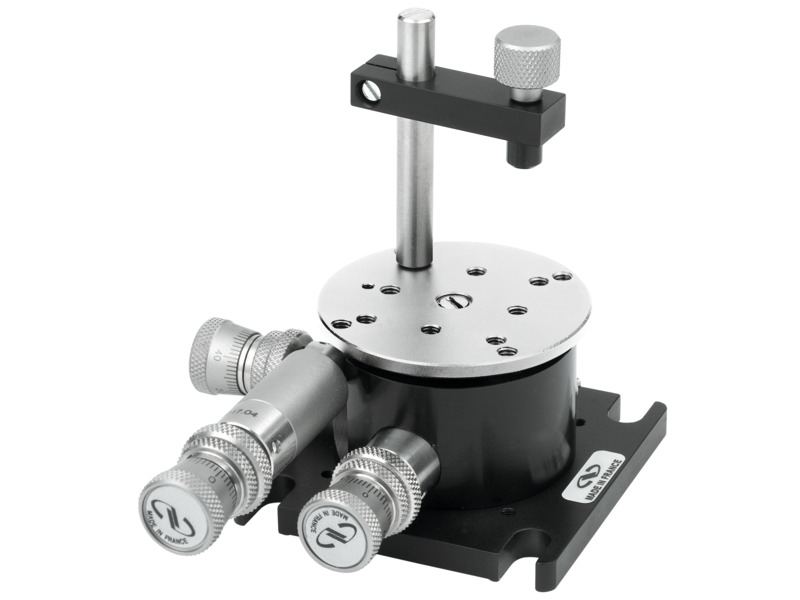

PO Tilt and Rotation Stages provide two independent tilt adjustments plus the added versatility of an in-plane rotation adjustment. These adjustments allow optical components like prisms and acousto-optic modulators to be oriented parallel to a desired plane, and then rotated within that plane. Three high-resolution drive options are available All three axes are spring-loaded to eliminate backlash

Differential Micrometers Option for Exceptional Sensitivity

The Differential Micrometers used on these stages provide sensitivity that is 10X better than that from a standard adjustment screws.

Easy Mounting of Optical Components

For easy insertion and removal of optical components, a mounting clamp is included. The spring-loaded clamp securely, yet gently, holds optics to the platform.

Easily Combined for Multi-axis Motion

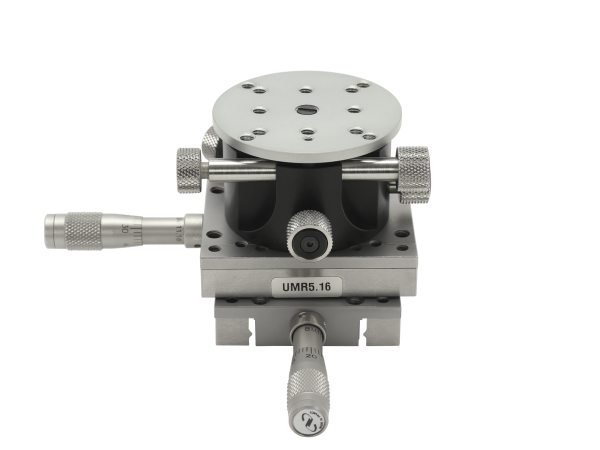

With base plate being removed, the Three-Axis Prism Tilt Mounts can be integrated with UMR5.16 or UMR5.25 High Load Linear Stages to provide multi-axis motion in a compact profile and can be easily adapted to fit a specific system's needs.

Locking Actuators

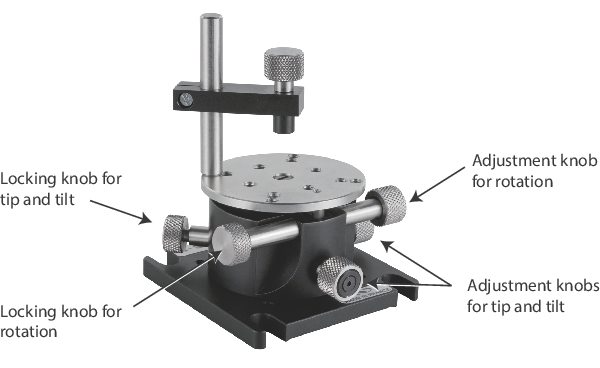

For long-term stability, (M-)PO46BL-50 Three-Axis High-Resolution Prism Tilt Mount features lockable actuators. To lock the tip and tilt adjustment, simply tighten the knob at the corner of the mount to prevent unintended adjustments. The knob aligned with the rotation adjuster locks the in-plane rotation.
