Compare Model Drawings, CAD & Specs Availability Price
05SWF-400-B
Shortpass Filter, Dichroic, 12.5 mm, 400 nm Cut-off, 325-385 nm Transmission
$168
In Stock
 05SWF-400-B Shortpass Filter, Dichroic, 12.5 mm, 400 nm Cut-off, 325-385 nm Transmission
In Stock
 $168

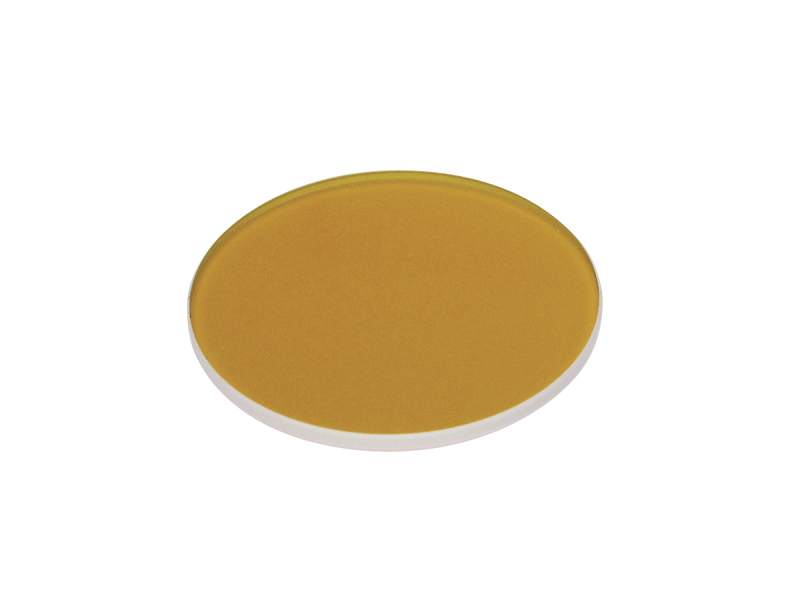

10SWF-400-B
Shortpass Filter, Dichroic, 25.0 mm, 400 nm Cut-off, 325-385 nm Transmission
$177
In Stock
 10SWF-400-B Shortpass Filter, Dichroic, 25.0 mm, 400 nm Cut-off, 325-385 nm Transmission
In Stock
 $177
10SWF-1000-C
Shortpass Filter, 25.0 nm, 1000 nm Cut-off, 465-988 nm Transmission
$314
In Stock
 10SWF-1000-C Shortpass Filter, 25.0 nm, 1000 nm Cut-off, 465-988 nm Transmission
In Stock
 $314
10SWF-1050-B
Shortpass Filter, 25.0 nm, 1050 nm Cut-off, 485-1036 nm Transmission
$314
In Stock
 10SWF-1050-B Shortpass Filter, 25.0 nm, 1050 nm Cut-off, 485-1036 nm Transmission
In Stock
 $314
10SWF-1100-B
Shortpass Filter, 25.0 mm, 1100±11 nm Cut-On, 510-1085 nm Trans.
$314
In Stock
 10SWF-1100-B Shortpass Filter, 25.0 mm, 1100±11 nm Cut-On, 510-1085 nm Trans.
In Stock
 $314

Specifications

  • Type
    High Transmission Shortpass Filter
  • Surface Quality
    80-50 scratch-dig
  • Size Tolerance
    +0.0/-0.2 mm
  • Temperature Range
    -50 to 100°C
  • Humidity Resistance
    Per MIL-STD-810E, Method 507.3, Procedure III Modified to 7 cycles

Features

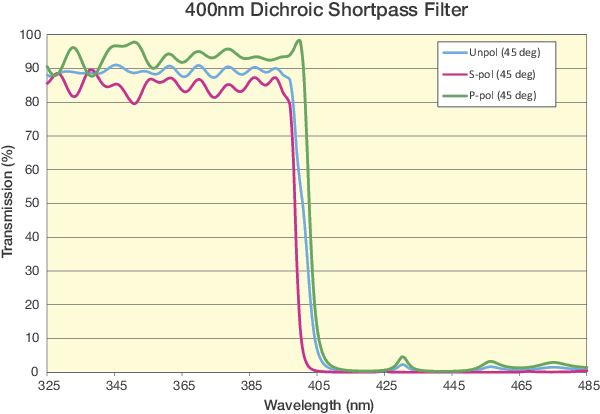

Dichroic Shortpass Filter

Our Dichroic Shortpass Edge Filters are available in 12.5 and 25 mm diameters, with a 400 nm cut-off wavelength. Designed for 45° angle of incidence, they transmit 325-385 nm spectral range and reject 420 - 485 nm spectral range by reflection. They are ideal for life science applications including fluorescence microscopy or for integration into instrumentation.

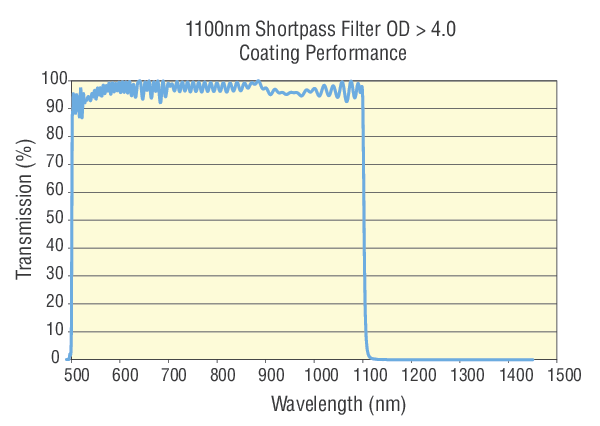

High-Performance Shortpass Filter

Our high performance shortpass filters are available with cut-off wavelengths of 1000 nm, 1050 nm, and 1100 nm. Designed for 0° angle of incidence, these filters feature ≥ 91% transmission in the passband, OD ≥ 4 rejection in out-of-band, and < 1% cut-off slope.
