Shortpass Filter, Dichroic, 25.0 mm, 400 nm Cut-off, 325-385 nm Transmission

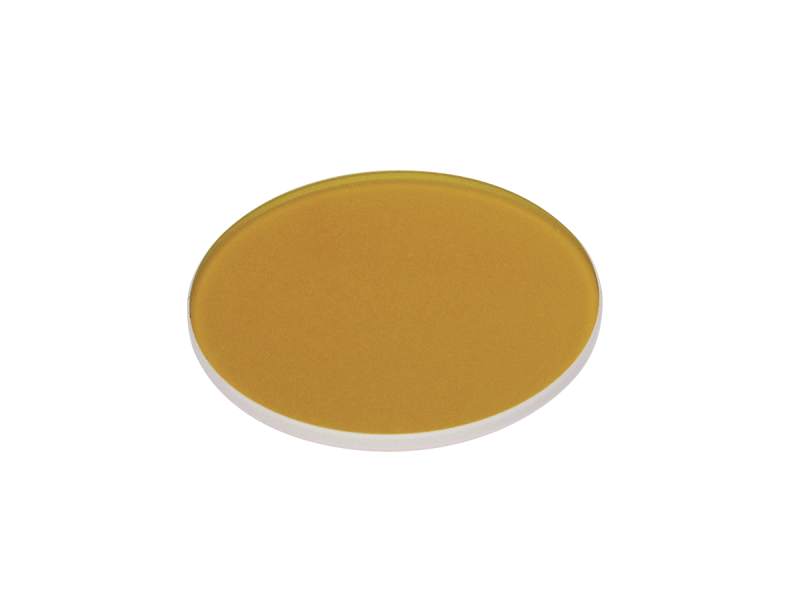

The 10SWF-400-B Dichroic Shortpass Edge Filter is a 0.98 in. (25.0 mm) diameter filter with a cut-off wavelength of 400 ±2 nm. Designed for 45 degree angle of incidence beams, it transmits 325-385 nm spectral range and rejects 420 - 485 nm spectral range by reflection. Our short-wave pass filters have a steep transition between the region of transmission and reflection that is much steeper than colored glass filters.

Specifications

Technical Specs

Type
High Transmission Shortpass Filter
Optic Size
Ø25.0 mm
Cut-off Wavelength
400 nm
Cut-off Wavelength Tolerance
± 2 nm
Angle of Incidence
45°
Transmittance Range

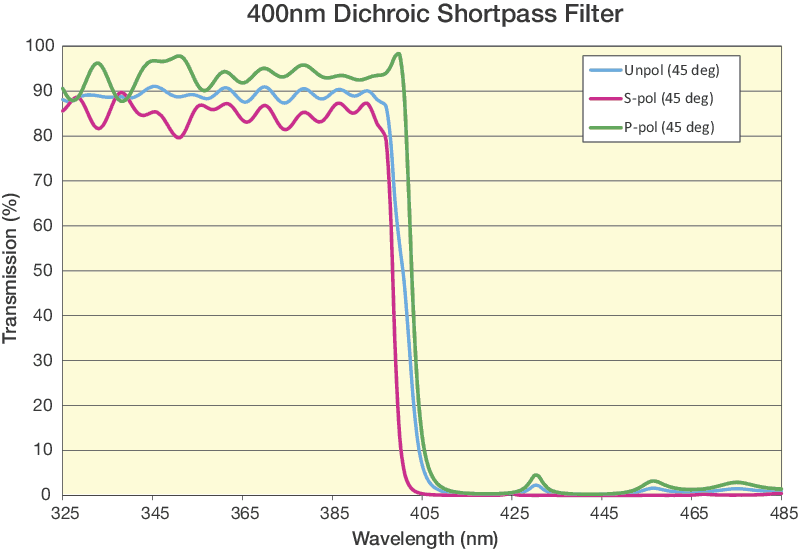

325 - 385 nm
Transmission
>85%
Rejection Band
420 - 485 nm
Reflectance

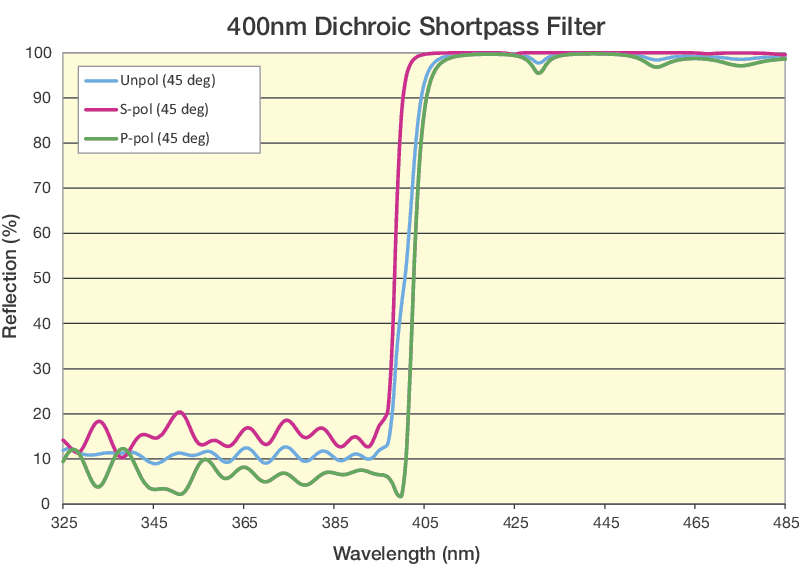

>97%

Surface Quality
80-50 scratch-dig
Thickness
1.05 mm
Thickness Tolerance
±0.1 mm
Size Tolerance
+0.0/-0.1 mm
Temperature Range
-50 to 100°C
Humidity Resistance
Per MIL-STD-810E, Method 507.3, Procedure III Modified to 7 cycles

Type
High Transmission Shortpass Filter
Optic Size
Ø25.0 mm
Cut-off Wavelength
400 nm
Cut-off Wavelength Tolerance
± 2 nm
Angle of Incidence
45°
Transmittance Range
325 - 385 nm
Transmission
>85%
Rejection Band
420 - 485 nm
Reflectance
>97%

Surface Quality
80-50 scratch-dig
Thickness
1.05 mm
Thickness Tolerance
±0.1 mm
Size Tolerance
+0.0/-0.1 mm
Temperature Range
-50 to 100°C
Humidity Resistance
Per MIL-STD-810E, Method 507.3, Procedure III Modified to 7 cycles
