Compare Model Drawings, CAD & Specs Availability Price

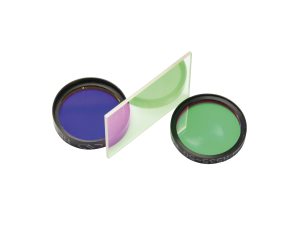

25.5 x 36 mm fluorescence longpass dichroic filter
HPD400
Fluorescence Dichroic Filter, 25.5 x 36 mm, 425-515 nm Trans.
$254
In Stock
 HPD400 Fluorescence Dichroic Filter, 25.5 x 36 mm, 425-515 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD410
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 425-515 nm Trans.
$254
In Stock
 HPD410 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 425-515 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD440
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 454-495 nm Trans.
$254
In Stock
 HPD440 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 454-495 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD455
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 492-510 nm Trans.
$254
In Stock
 HPD455 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 492-510 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD480
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 487-545 nm Trans.
$254
In Stock
 HPD480 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 487-545 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD490
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 520-570 nm Trans.
$254
In Stock
 HPD490 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 520-570 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD495
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 512-570 nm Trans.
$254
In Stock
 HPD495 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 512-570 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD505
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 512-570 nm Trans.
$254
In Stock
 HPD505 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 512-570 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD515
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 520-565 nm Trans.
$254
In Stock
 HPD515 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 520-565 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD520
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 531-750 nm Trans.
$254
In Stock
 HPD520 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 531-750 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD525
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 530-595 nm Trans.
$254
In Stock
 HPD525 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 530-595 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD530
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 537-610 nm Trans.
$254
In Stock
 HPD530 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 537-610 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD540
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 550-615 nm Trans.
$254
In Stock
 HPD540 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 550-615 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD550
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 567-620 nm Trans.
$254
In Stock
 HPD550 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 567-620 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD560
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 575-650 nm Trans.
In Stock
 HPD560 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 575-650 nm Trans.
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
HPD565
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 587-650 nm Trans.
$254
In Stock
 HPD565 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 587-650 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD570
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 587-650 nm Trans.
$254
In Stock
 HPD570 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 587-650 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD580
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 592-660 nm Trans.
$254
In Stock
 HPD580 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 592-660 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD585
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 592-660 nm Trans.
$254
In Stock
 HPD585 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 592-660 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD590
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 612-675 nm Trans.
$254
In Stock
 HPD590 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 612-675 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD595
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 608-700 nm Trans.
$254
In Stock
 HPD595 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 608-700 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD610
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 619-680 nm Trans.
$254
In Stock
 HPD610 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 619-680 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD635
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 647-710 nm Trans.
$254
In Stock
 HPD635 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 647-710 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD645
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 620-720 nm Trans.
$254
In Stock
 HPD645 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 620-720 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD655
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 667-725 nm Trans.
$254
In Stock
 HPD655 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 667-725 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD660
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 673-740 nm Trans.
$254
In Stock
 HPD660 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 673-740 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD675
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 686-745 nm Trans.
$254
In Stock
 HPD675 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 686-745 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD680
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 692-760 nm Trans.
$254
In Stock
 HPD680 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 692-760 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD695
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 705-780 nm Trans.
$254
In Stock
 HPD695 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 705-780 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD755
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 765-860 nm Trans.
$254
In Stock
 HPD755 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 765-860 nm Trans.
In Stock
 $254
25.5 x 36 mm fluorescence longpass dichroic filter
HPD760
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 765-860 nm Trans.
$254
In Stock
 HPD760 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 765-860 nm Trans.
In Stock
 $254

Specifications

  • Type
    Dichroic Fluorescence Filter
  • Optic Size
    25.5 x 36 mm
  • Transmission
    ≥93%
  • Reflectance
    ≥95%
  • Surface Quality
    60-40 scratch-dig
  • Thickness
    1.0 mm
  • Temperature Range
    -100 to 300 °C
  • Humidity Resistance
    MIL-STD-810, Method 507.3, Procedure III, Modified to 40 cycles

Features

Superior Stabilife® Coating Technology

HPF™ fluorescence filters are manufactured using our patented Stabilife® coating technology. They are manufactured using two patented processes for the deposition of metal oxide thin film optical coatings: Reactive Ion Plating (RIP) and Hybrid Plasma Enhanced Deposition (HPED). Both processes yield highly dense, thin film coatings with extraordinary hardness, abrasion resistance, and adhesion to the substrate. Newport's Stabilife processes have been in full-scale production at our coating facility in Franklin, Massachusetts since the early 1990s.

Higher Film Density & Maximized Spectral Stability

For demanding applications such as fluorescence detection, wavelength stability is absolutely critical to insure dependable results. Newport's fluorescence filters with Stabilife coating technology have much higher spectral stability than competitors. One of the critical factor affecting the spectral stability of an optical coating is film density. Unlike competitor's unstabilized metal oxide thick film coating with less film density which typically contributes to environmentally induced spectral shift of 2-5%, Newport's Stabilife coatings have a much higher density and lower void ratio and are therefore less affected by water absorption. They typically exhibit total wet-to-dry shifts of less than 0.02% of wavelength.

Measured transmittance scans of a Stabilife filter at 0% and 100% relative humidity. Scans are exactly overlaid as no shift is discernable at the standard scan speed for a 30nm bandwidth filter.

Minimized Spectral Shifting for Temperature Variations

Measured temperature-induced wavelength shift of an unstabilized metal oxide ultranarrow bandpass filter compared to a Stabilife® ultra-narrow bandpass filter.

Stabilife coatings are typically 5 to 10 times less sensitive to thermal variation than un-stabilized metal oxide films as a result of film densification. Temperature change functions are a catalyst for moisture migration in thin films having a significant volume of voids. When un-stabilized films are exposed to high temperatures, moisture migrates out of film voids contributing to the wavelength change discussed earlier. The high film density and reduced permeability resulting from the Stabilife processes reduces this effect providing the maximum spectral stability available for all types of precision coatings including bandpass, dichroic, edge, notch and polarizer coatings.
