Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 492-510 nm Trans.
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 492-510 nm Trans.
Model: HPD455
Product Series Overview

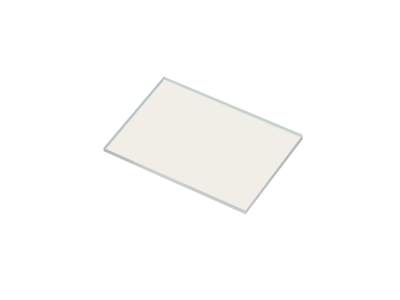

Fluorescence Longpass Dichroic FiltersThe HPD455 HPF™ Series Fluorescence Longpass Dichroic Filter is manufactured to provide maximum performance delivering exceptionally high transmission (≥ 93%) from 492 - 510 nm and high reflectance (≥ 95% from 420- 425 nm. This rectangular shaped dichroic filter is 25.5 x 36.0 mm with a nominal 1.0 mm thickness.
Specifications
- TypeFluorescence Longpass Dichroic Filter
- Optic Size25.5 x 36.0 mm
- Transmittance Range492 - 510 nm
- TransmissionTavg≥93%
- Reflectance Band420 - 425 nm
- ReflectanceRavg≥95%
- Thickness1.0 mm
Resources & Downloads
Literature
Fluorescence Filters Brochure(2.1 MB, PDF)
