Fiber Bundle Ferrules
Fiber Bundle Ferrules
Most Oriel Fiber Bundles use 11 mm ferrules. Having a common external bundle diameter simplifies coupling and positioning. Convert SMA or ST terminations to 11mm ferrules to make them compatible with Oriel accessories. Also, the ferrules described here may be added to third-party fiber assemblies and liquid light guides.
- Convert fibers with SMA fibers to Oriel 11 mm terminations
- Convert fibers with ST connectors to Oriel 11 mm terminations
- Adapt third-party fiber optic cables and liquid light guides for use with Oriel accessories See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

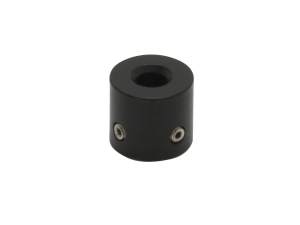

 | 77640Fiber Bundle Ferrule, 11mm, 0.16 inch Inner Dia., 0.38 inch Length | 5 Weeks | ||||

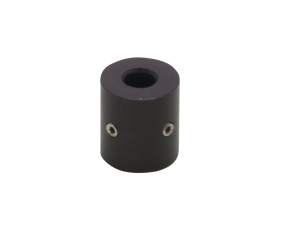

 | 77663Fiber Bundle Ferrule, 11mm, 0.16 inch Inner Dia., 0.48 inch Length | |||||
 | 77641Fiber Bundle Ferrule, 11mm, 0.18 inch Inner Dia., 0.38 inch Length | In Stock | ||||
 | 77642Fiber Bundle Ferrule, 11mm, 0.18 inch Inner Dia., 0.48 inch Length | In Stock | ||||

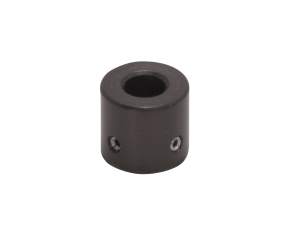

 | 77665Fiber Bundle Ferrule, 11mm, 0.20 inch Inner Dia., 0.38 inch Length | In Stock | ||||

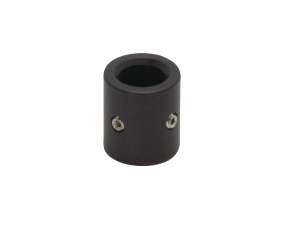

 | 77666Fiber Bundle Ferrule, 11mm, 0.25 inch Inner Dia., 0.48 inch Length | In Stock | ||||
| 77667Fiber Bundle Ferrule, 11mm, 0.31 inch Inner Dia., 0.48 inch Length | In Stock | ||||
 | 77670Ferrule Converter, SMA Termination to 11mm Standard Ferrule | In Stock | ||||
 | 77675Ferrule Converter, ST Termination to 11mm Standard Ferrule | In Stock |
Features
Convert fibers with SMA fibers to Oriel 11mm terminations

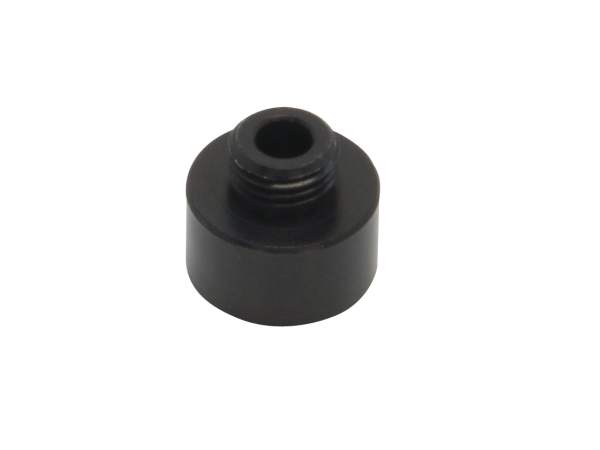

Model 77670 ferrule converter
Most Newport fiber optic cable assemblies are offered with standard 11 mm ferrule terminations. For those with SMA terminations, we offer the model 77670 to convert the termination type to be compatible with our standard fiber holders. You can also convert any third-party fiber with an SMA termination.
Convert fibers with ST connectors to Oriel 11mm terminations

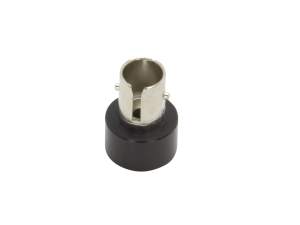

Model 77675 ST fiber ferrule converter
Most Newport fiber optic cable assemblies are offered with standard 11 mm ferrule terminations. For those with ST terminations, we offer the model 77675 to convert the termination type to be compatible with our standard fiber holders.
Adapt third-party fiber optic cables and liquid light guides for use with Oriel accessories

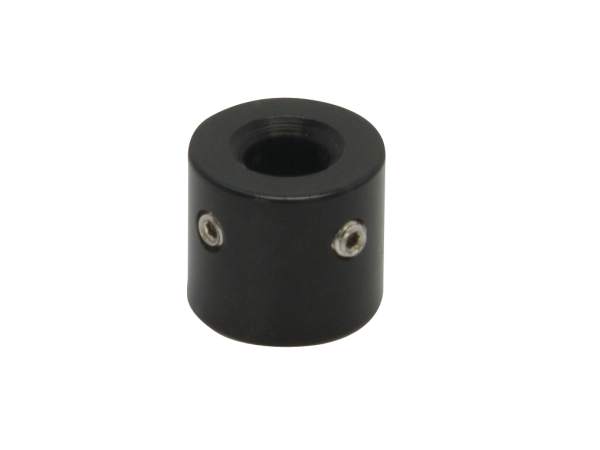

Model 77641 ferrule converter
Third party fibers and liquid light guides with cylindrical terminations may be converted to standard Oriel 11mm terminations by use of these ferrules. This allows them to be compatible with Oriel's wide array of fiber coupling accessories. These standard Fiber Optic Ferrules are aluminum cylinders that attach to the tips of fiber bundles, using set screws. Contact Newport Sales for more information on OEM opportunities.
