FemtoOptics™ P Polarized Beamsplitters

FemtoOptics P-Polarized Beamsplitters offer a number of reflectance and transmission ratios for sub 25 fs pulsed lasers. Designed for P polarized incident light, 45 degrees angle of incidence, and the fundamental wavelength for Ti:Sapphire lasers, the beam can be split with reflectivities of either 67%, 76%, 80% or 90%.

Optimized for P polarization at 45^ͦ angle of incidence
Choice of 67%, 76%, 80% or 90% splitting ratios
Minimum GDD upon both reflection and transmission
Constant splitting ratio over the specified bandwidth
Beamsplitting or sampling for intense pulses down to 25 fs or less

See All Features

Description	Compatibility	Reflection	Coating Code	Avail.	Price
10Q08-03UF.BS67Beamsplitter, FemtoOptics, P Polarized, 25.4 mm diameter, 67%, 730-870 nm	UNIVERSAL	R_p = 67%	UF.BS67	In Stock	$431
10Q08-03UF.BS76Beamsplitter, FemtoOptics, P Polarized, 25.4 mm diameter, 76%, 730-870 nm	UNIVERSAL	R_p = 76%	UF.BS76	In Stock	$431
10Q08-03UF.BS80Beamsplitter, FemtoOptics, P Polarized, 25.4 mm diameter, 80%, 730-870 nm	UNIVERSAL	R_p = 80%	UF.BS80	In Stock	$431
10Q08-03UF.BS90Beamsplitter, FemtoOptics, P Polarized, 25.4 mm diameter, 90%, 730-870 nm	UNIVERSAL	R_p = 90%	UF.BS67	In Stock	$431

Specifications

Wavelength Range
730-870 nm
Diameter
25.4 mm
Material
Fused Silica
Coating Second Surface
No coating
Angle of Incidence
45°
Polarization
P

Surface Flatness
λ/4 at 633 nm
Surface Quality
10-5 scratch dig
Thickness
3 mm
Wedge
<30 arcseconds
Clear Aperture
> central 85% of diameter
Cleaning
Non-abrasive method, methanol or isopropyl alcohol on lens tissue recommended

Features

Ultrafast P Polarized Beamsplitters

These beam splitters are well suited for use with intense pulses with durations of 25 femtoseconds or less. Designed to work from 730 to 870 nm at 45 degrees angle of incidence, a specified percentage of the P polarized input will be reflected and the remainder transmitted. Carefully chosen coating material and design yield negligible GDD upon transmission and reflection. The slightly increased substrate thickness prevents any thermally induced deformation. Special care should be taken when mounting the beam splitters, since mechanical tension may lead to surface bending.

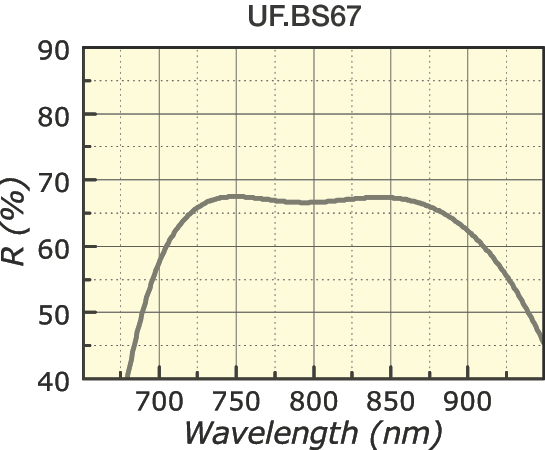

Reflectance of 67% Beamsplitter

Typical reflectance vs wavelength of ultra broadband dielectric 67% sub 25 femtosecond beam splitters for an angle of incidence of 45 degrees and p-polarized light.

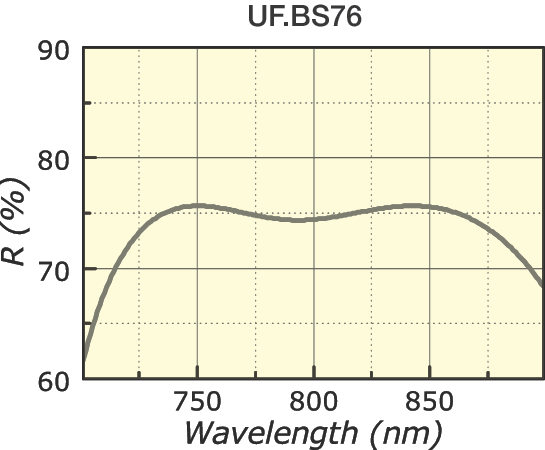

Reflectance of 76% Beamsplitter

Typical reflectance vs wavelength of ultra broadband dielectric 76% sub 25 femtosecond beam splitters for an angle of incidence of 45 degrees and p-polarized light.

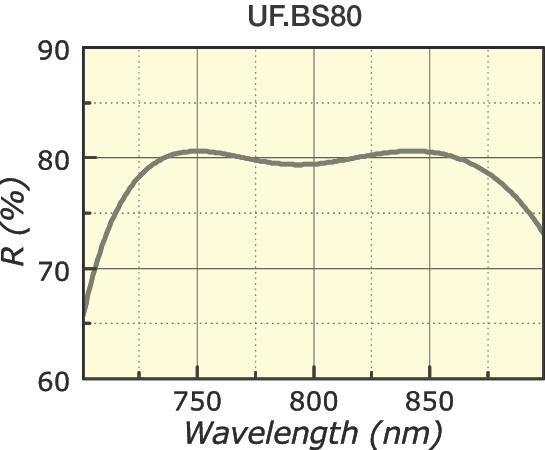

Reflectance of 80% Beamsplitter

Typical reflectance vs wavelength of ultra broadband dielectric 80% sub 25 femtosecond beam splitters for an angle of incidence of 45 degrees and p-polarized light.

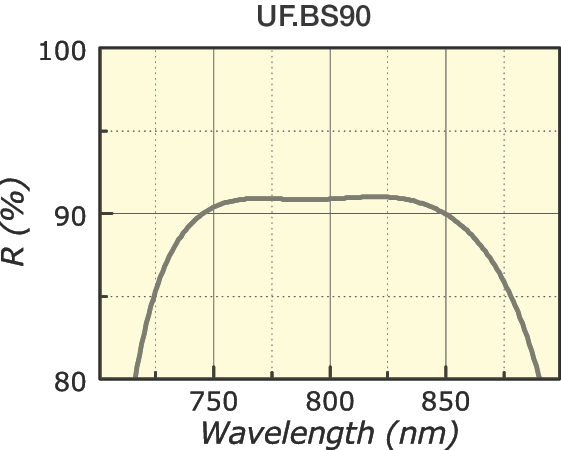

Reflectance of 90% Beamsplitter

Typical reflectance vs wavelength of ultra broadband dielectric 90% sub 25 femtosecond beam splitters for an angle of incidence of 45 degrees and p-polarized light.

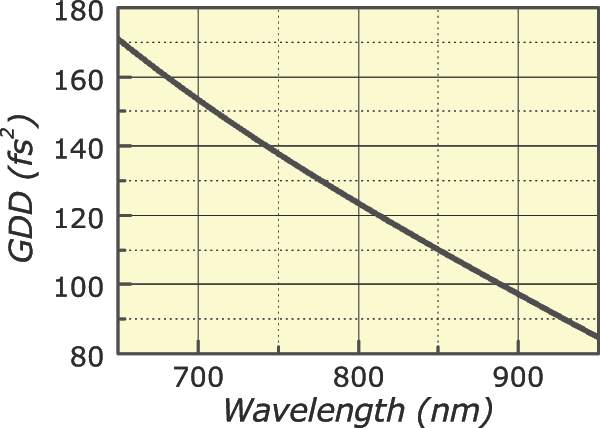

Minimum GDD

GDD vs wavelength for the transmitted beam for beam splitters with a thickness of 3 mm at 45 degrees angle of incidence. The GDD of the coating is negligible both in reflection and transmission.

FemtoOptics: The Premier Optics Product Line

FemtoOptics™ is the premier optics product line specifically optimized for femtosecond pulse manipulation. Consisting of innovative, high-quality, easy-to-use, cutting-edge optical components and assemblies, we have exceptional support and service for industrial and research applications across the world. For your convenience, Newport part numbers are shown here with the corresponding equivalent FemtoOptics part number. Please click here to learn our complete FemtoOptics offerings.

Newport Part	FemtoOptics Part
10Q08-03UF.BS67	OA971
10Q08-03UF.BS76	OA973
10Q08-03UF.BS80	OA975
10Q08-03UF.BS90	OA977
