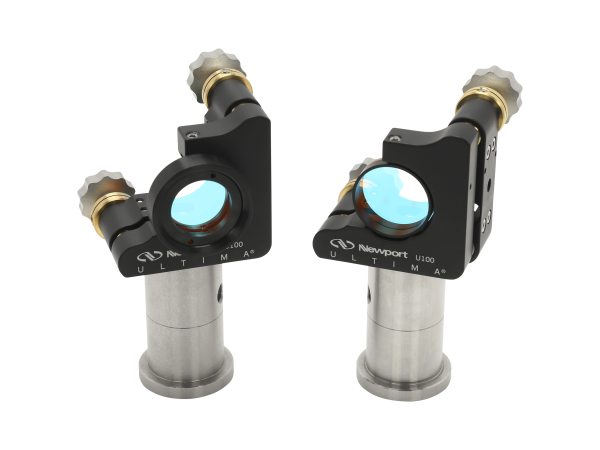

Some optical components are too thin for typical kinematic mounts to easily hold and position. Thus, Newport offers standard mounts and accessories that are specifically designed to provide precision pitch/yaw adjustment for thin lenses and other optics.

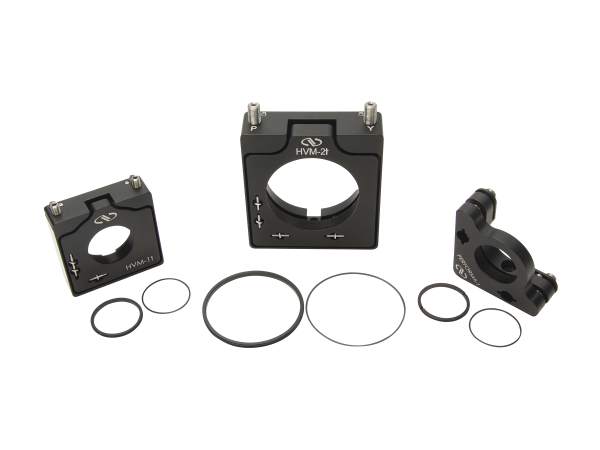

A threaded retainer ring is included with Newport's thin-optics mounts to hold the optical component in place. Additionally, a protective Delrin spacer is provided to prevent scratching the optic's coating or surface as it is secured.

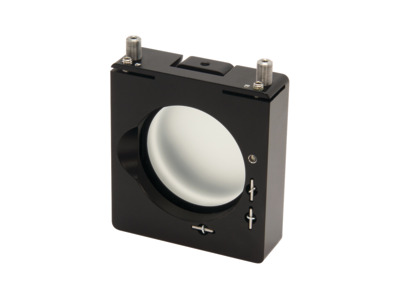

Optical components are loaded from the rear of our thin-optics mounts. That way, the front surface of the optic will be in the same mounting location regardless of its thickness. In contrast, a front-loading mount could locate a thin optic recessed within the mount, thereby limiting its reflective clear aperture.

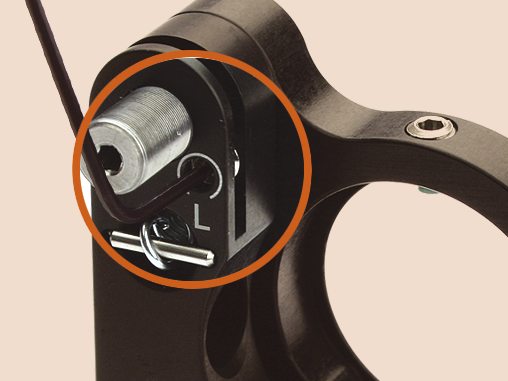

Newport's thin-optics mounts include locking Allen-Key adjustments to prevent unintended adjustment and to save space. This is especially useful for OEM applications which desire a "set and forget" capability.
Specialty adapters that enable standard Newport optical mounts to securely hold thin-optics are also available. The

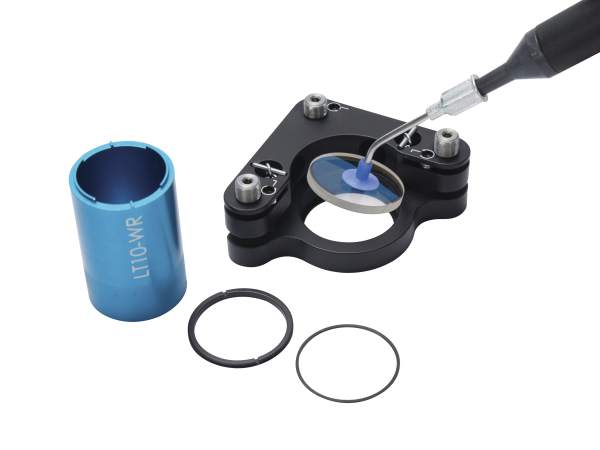

Newport also provides accessories to aid in the handling of thin optics. Our vacuum pick-up tool is equipped with special blue silicone suction cups which will not mark or leave residue on optics when used to pick and place optical components. Also available are spanner wrenches to easily and safely install and remove retaining rings from mirror mounts, lens tubes, or lens mounts with threaded aperture.
| Compare | Description | Avail. | Price | Qty. | ||
|---|---|---|---|---|---|---|
|
P50-At21 Mirror Mount, Thin Optic, 0.5 in., 100 TPI, 2 Locking Allen-Keys |
In Stock
|
$108 |
|
P50-At21
Mirror Mount, Thin Optic, 0.5 in., 100 TPI, 2 Locking Allen-Keys
In Stock
$108
|
|
|
P100-At28 Mirror Mount, Thin Optic, 1.0 in., 80 TPI, 2 Locking Allen-Keys |
In Stock
|
$98 |
|
P100-At28
Mirror Mount, Thin Optic, 1.0 in., 80 TPI, 2 Locking Allen-Keys
In Stock
$98
|
|
|
P100-At38 Mirror Mount, Thin Optic, 1.0 in., 80 TPI, 3 Locking Allen-Keys |
In Stock
|
$102 |
|
P100-At38
Mirror Mount, Thin Optic, 1.0 in., 80 TPI, 3 Locking Allen-Keys
In Stock
$102
|
|
|
P200-At28 Mirror Mount, Thin Optic, 2.0 in., 80 TPI, 2 Locking Allen-Keys |
In Stock
|
$176 |
|
P200-At28
Mirror Mount, Thin Optic, 2.0 in., 80 TPI, 2 Locking Allen-Keys
In Stock
$176
|
|
|
HVM-1t Mirror Mount, Industrial, Vertical Drive, Thin Optic, 1 in., 2 Locking Allen-Keys |
In Stock
|
$206 |
|
HVM-1t
Mirror Mount, Industrial, Vertical Drive, Thin Optic, 1 in., 2 Locking Allen-Keys
In Stock
$206
|
|
|
HVM-S1t Mirror Mount, Industrial, Vertical Drive, Thin Optic, 1 in., 2 Locking Allen-Keys |
In Stock
|
$235 |
|
HVM-S1t
Mirror Mount, Industrial, Vertical Drive, Thin Optic, 1 in., 2 Locking Allen-Keys
In Stock
$235
|
|
|
HVM-2t Mirror Mount, Industrial, Vertical Drive, Thin Optic, 2 in., 2 Locking Allen-Keys |
4 Weeks
|
$258 |
|
HVM-2t
Mirror Mount, Industrial, Vertical Drive, Thin Optic, 2 in., 2 Locking Allen-Keys
4 Weeks
$258
|
|
|
HVM-1lt Mirror Mount, Vertical Drive, Low Wavefront Distortion, Thin Optic, 1 in., 2 Locking Allen-Keys, 8-32 |
In Stock
|
$254 |
|
HVM-1lt
Mirror Mount, Vertical Drive, Low Wavefront Distortion, Thin Optic, 1 in., 2 Locking Allen-Keys, 8-32
In Stock
$254
|
|
|
M-HVM-1lt Mirror Mount, Vertical Drive, Low Wavefront Distortion, Thin Optic, 1 in., 2 Locking Allen-Keys, M4 |
In Stock
|
$254 |
|
M-HVM-1lt
Mirror Mount, Vertical Drive, Low Wavefront Distortion, Thin Optic, 1 in., 2 Locking Allen-Keys, M4
In Stock
$254
|
| Compare | Description | Avail. | Price | Qty. | ||
|---|---|---|---|---|---|---|
|
UPATO Thin Optics Adapter, 1.0 in. (25.4 mm) Diameter |
In Stock
|
$48 |
|
UPATO
Thin Optics Adapter, 1.0 in. (25.4 mm) Diameter
In Stock
$48
|
|
|
LT10-SP4-PK Lens Spacer, 1.0 in. Diameter, 4.0 mm Thick, Aluminum, 6-pack |
In Stock
|
$54 |
|
LT10-SP4-PK
Lens Spacer, 1.0 in. Diameter, 4.0 mm Thick, Aluminum, 6-pack
In Stock
$54
|
| Compare | Description | Avail. | Price | Qty. | ||
|---|---|---|---|---|---|---|
|
VTL-KT Vacuum Pick-up Tool Kit, Non-Marking Suction Cups |
In Stock
|
$105 |
|
VTL-KT
Vacuum Pick-up Tool Kit, Non-Marking Suction Cups
In Stock
$105
|
|
|
LT10-WR Spanner Wrench, 1 inch LT Series Lens Tubes |
In Stock
|
$30 |
|
LT10-WR
Spanner Wrench, 1 inch LT Series Lens Tubes
In Stock
$30
|
|
|
LT20-WR Spanner Wrench, 2.0 inch LT Series Lens Tubes |
In Stock
|
$42 |
|
LT20-WR
Spanner Wrench, 2.0 inch LT Series Lens Tubes
In Stock
$42
|
If our standard thin-optics mounts do not quite meet the requirements for your application, Newport has the capability to provide custom thin-optics mounts with features such as low wavefront distortion, front-loading and holding other diameter sizes – please contact us for more information.
