45 Degree Optic Mount, Fixed, 25.4 mm Diameter, A-LINE
45 Degree Optic Mount, Fixed, 25.4 mm Diameter, A-LINE
Model: LH-1X-45
Product Series Overview

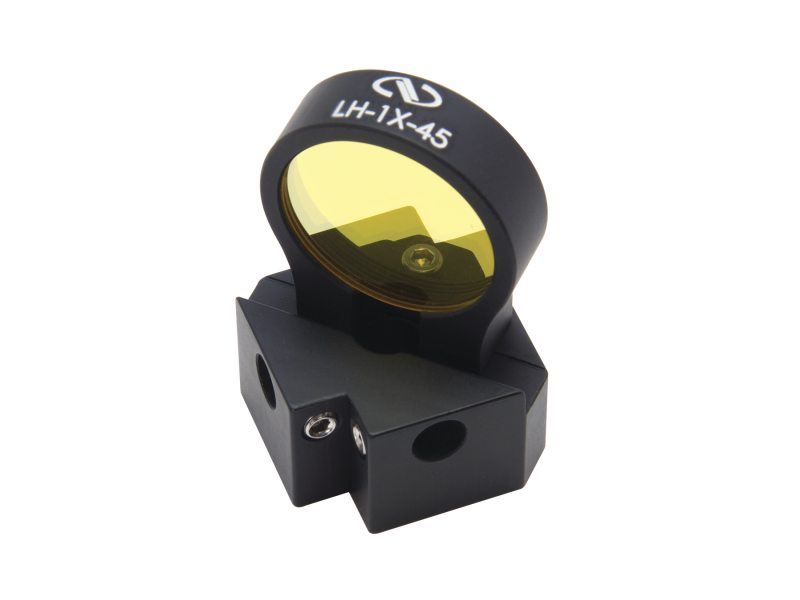

A-Line Fixed Optic MountsThe LH-1X-45 is a fixed optic mount designed for making 90-degree beam folds with the A-LINE™ system. The mount holds standard Ø1 in. (25.4 mm) mirrors, beam splitters and filters with a threaded retaining ring . It is designed to be mounted on LH-GR guide rods but can also be post mounted as well.
Resources & Downloads
2D Product Drawings
LH-1X-45 DWG.pdf(121.1 kB, PDF)
