Mirror Mount, ULTIMA^®, Clear Edge, 1 in., (2) Locking Allen-Keys, Vacuum

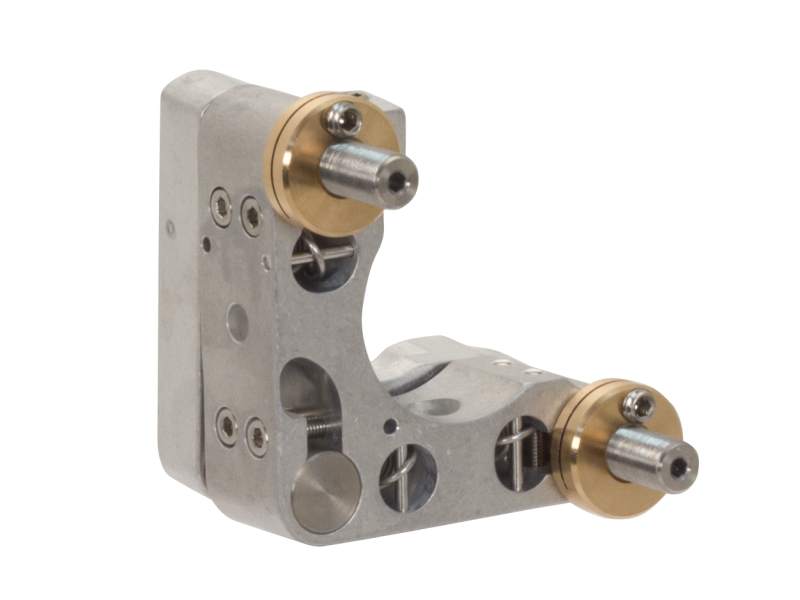

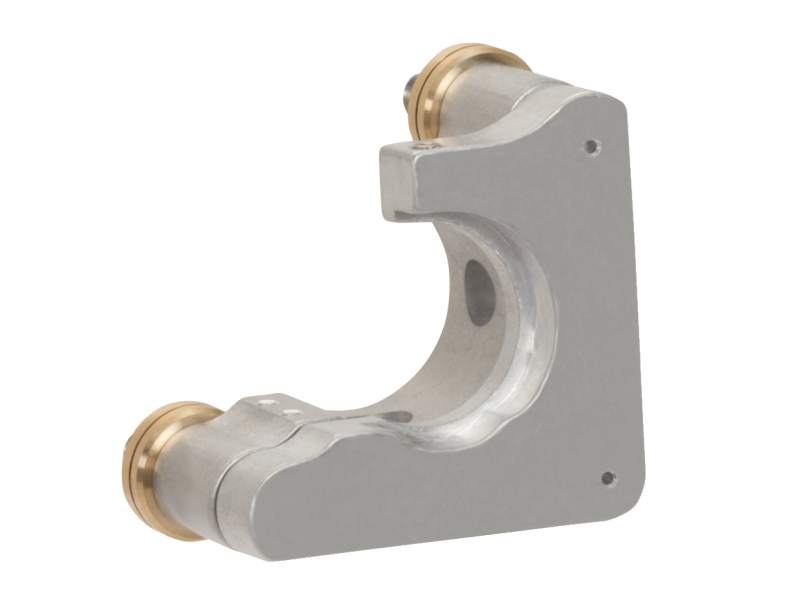

The U100-A2H-V6 ULTIMA^® Clear Quadrant Mirror Mount is ready for cleanroom and vacuum chamber applications. This mount is not anodized, uses vacuum compatible actuators made from bronze, has venting holes and is chemically cleaned to remove contamination. It is designed to hold 1 inch (25.4 mm) diameter optics and includes two 100 TPI locking hex actuators providing ±7° of tip/tilt adjustment. Convenient clearance mounting holes on each of two sides are compatible with either 8-32 or M4 screws providing quicker, more precise, and more secure mounting. ULTIMA mounts can be mounted to posts for adjustable height or pedestal posts for a stable fixed height.
