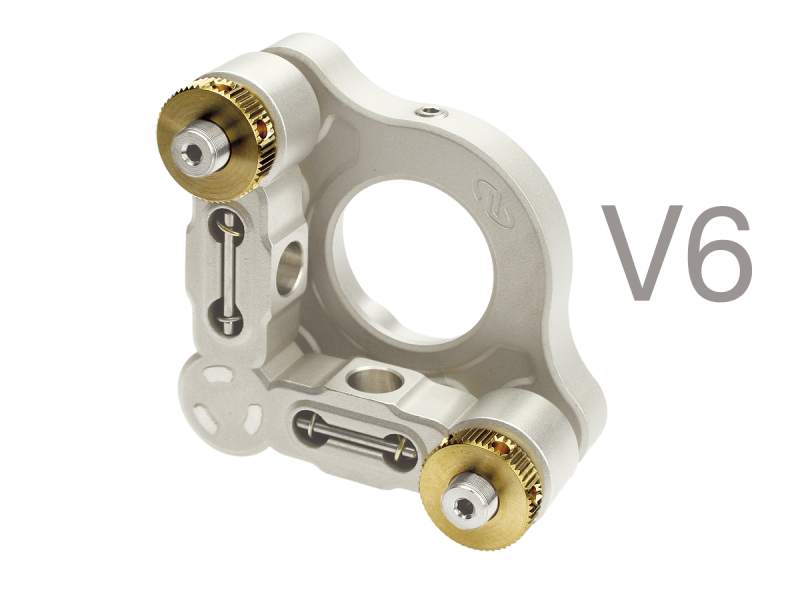

Mirror Mount, Suprema^®, 1.0 in, (2) 100-TPI Locking Hex Actuators, Vacuum

Low Outgassing and LaserClean Mirror Mounts

Model: SS100-F2H-V6

$213

In Stock

Compare

Product Series Overview

Low Outgassing and LaserClean Mirror Mounts

The SS100-F2H-V6 vacuum compatible Suprema^® Stainless Steel Kinematic Optical Mounts are fabricated from powdered stainless steel and specially prepared high vacuum environments.The SS100 has Full Aperture version with 100-TPI actuators. Polished and lapped carbide pads enable smooth, repeatable motion and outstanding stability. These mounts have a two-actuator configuration with locking Hex Adjustment Screws providing tip and tilt adjustability. Convenient 8-32 (M4) counterbored clearance holes provide quick, precise, secure and stable mounting. Suprema mounts are compatible with standard post and post holder systems for adjustable height and pedestal posts for a stable fixed height.

Specifications

Technical Specs

Type
Precision
Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
2
Actuator Drive
Allen-Key
Actuator Locks
Yes
Adjustment Screw Thread
100 TPI
Adjustments
θx, θy
Sensitivity
3.8 arc sec
Angular Range
±4°

Actuator Orientation
Right-handed
Optic Loading
Front
Material
Stainless Steel
Drive Type
Allen-Key, locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
Optic Mounting
Set Screw
Vacuum Compatibility
High Vacuum (10-6 Torr)

Type
Precision
Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
2
Actuator Drive
Allen-Key
Actuator Locks
Yes
Adjustment Screw Thread
100 TPI
Adjustments
θx, θy
Sensitivity
3.8 arc sec
Angular Range
±4°

Actuator Orientation
Right-handed
Optic Loading
Front
Material
Stainless Steel
Drive Type
Allen-Key, locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
Optic Mounting
Set Screw
Vacuum Compatibility
High Vacuum (10-6 Torr)
