Optic Clamping Arm, 6 mm Diameter Rod
Optic Clamping Arm, 6 mm Diameter Rod
Model: TC-1
Product Series Overview

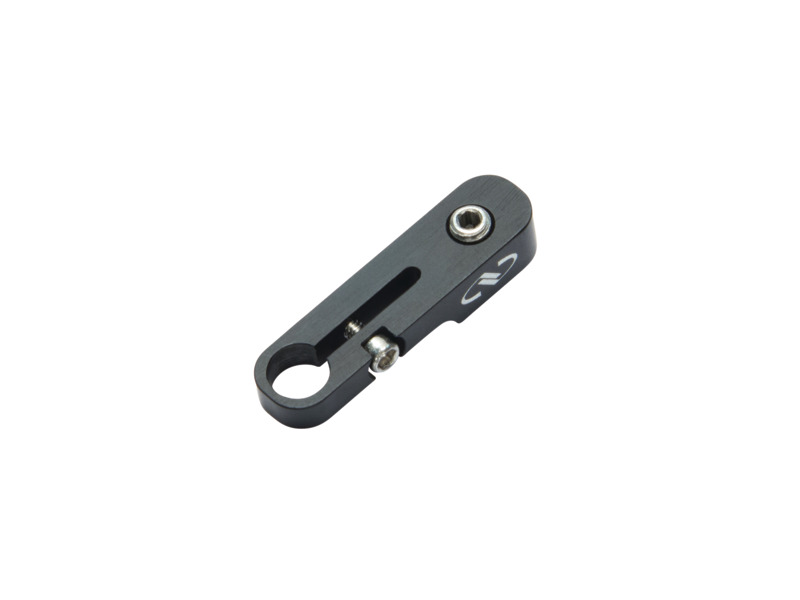

Prism and Optic Clamping ArmsThe TC-1, Optic Clamping Arm slides on to our 6 mm diameter guide rods to allow clamping of optics to mounts. A nylon-tipped setscrew with a 5/64" (2.0 mm) hex is used to secure optics in place. The TC-1’s Clamping height can be extended using various lengths of our OC1-GR series guide rods.
Resources & Downloads
2D Product Drawings
TC-1 Drawing(84.3 kB, PDF)
Other
TC-1_RoHS2021.pdf(678.1 kB, PDF)
