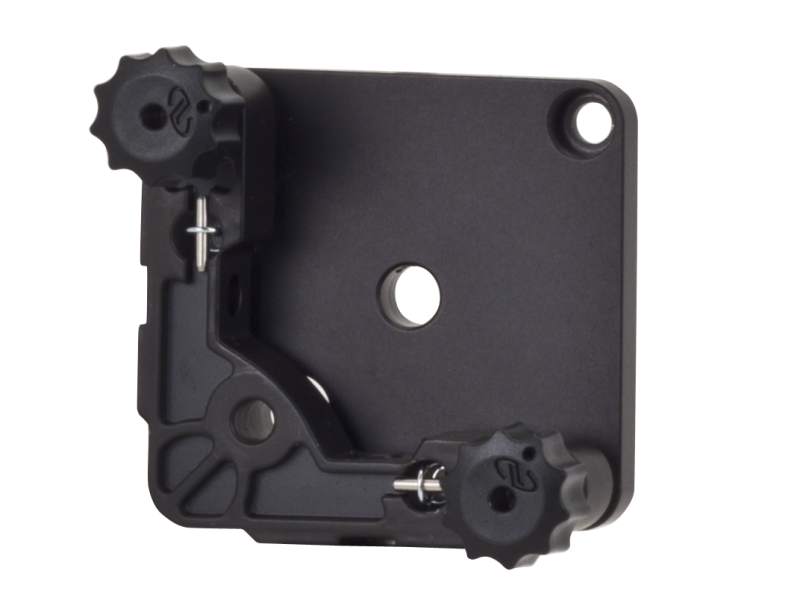

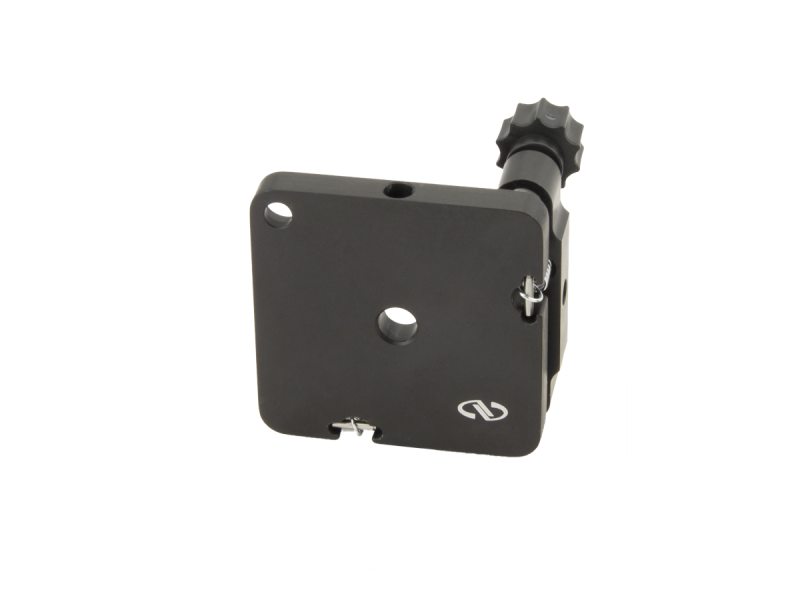

Platform Optical Mount, 2.0 x 2.0 in., 2 Knob Actuators

Model: M1-P2

$66

3 Weeks

Compare

Add to List

Product Series Overview

Platform Mirror Mounts

The M1-P2 Platform Optical Mount is ideal for general purpose applications requiring a compact, robust, kinematic design at an economical price. The M1-P2 is a 2.0 inch platform version for holding mounted mirrors, prisms, or cube beamsplitters. UPA-series adaptors allow other sized mirrors to be securely held and positioned. Two precision 100-TPI adjustment screws are standard providing exceptionally smooth, high-resolution adjustment.

Specifications

Technical Specs

Mechanism

Kinematic
Platform Size

50.8 x 50.8 mm
Number of Actuators

2
Actuator Locks

No
Adjustment Screw Thread

100 TPI
Adjustments

θx, θy
Sensitivity

3.8 arc sec

Angular Range

±4°
Material

Anodized Aluminum
Drive Type

Knob, non-locking
Platform Thread

1/4-20 (M6) CLR
Mounting Holes

8-32 (M4) CLR

Mechanism

Kinematic
Platform Size

50.8 x 50.8 mm
Number of Actuators

2
Actuator Locks

No
Adjustment Screw Thread

100 TPI
Adjustments

θx, θy
Sensitivity

3.8 arc sec

Angular Range

±4°
Material

Anodized Aluminum
Drive Type

Knob, non-locking
Platform Thread

1/4-20 (M6) CLR
Mounting Holes

8-32 (M4) CLR

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

M1-P2 (150.2 kB, PDF)

Other

M1-P2_RoHS2021.pdf (680.2 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
SK-A Socket Head Cap Screw Kit, Stainless Steel, 8-32 & 1/4-20, Qty 805	UNIVERSAL	3 Weeks	$128
BB-M Optical Beam Block, Tool Holder, Magnetic-Base, Medium	UNIVERSAL	In Stock	$35
CCL-1 Cable Clamps, Qty 5 Short and 5 Long	UNIVERSAL	In Stock	$48
BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	In Stock	$38
SK-TA Thread Adaptor Set, English	UNIVERSAL	In Stock	$320

Similar

Description	Compatibility	Avail.	Price
U100-P2K Platform Optical Mount, ULTIMA^®, 2.0 x 2.0 in, 2 Locking Knob Adjustment	UNIVERSAL	In Stock	$171
U200-P3H Platform Optical Mount, ULTIMA^®, 2.75 x 2.75 in., 3 Locking Allen-Keys	UNIVERSAL	In Stock	$281
P100-P Platform Optical Mount, Miniature, 1.0 in., 2 Knob Adjustment, 8-32	IMPERIAL	In Stock	$74

Supporting

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		PT-1C Prism Clamp, Platform Mounts	UNIVERSAL		In Stock	$20

Compatible

Description	Compatibility	Avail.	Price
SP-2 Optical Post, 2.0 in. Height, 0.5 in. Diameter, 8-32 and 1/4-20 Thread	IMPERIAL	In Stock	$6
SPV-2 Optical Mounting Post, 2.0 in., 0.5 in. Dia. Composite, 8/32 & 1/4-20	IMPERIAL	In Stock	$7.30
PS-2 Optical Pedestal, 2.0 in. Height, 1.0 in. Diameter, 8-32 Thread	IMPERIAL	In Stock	$30
Q-TMS-2 Optical Post Holder, 2.0 in. Height, 1.0 in. Posts, Inc. Clamping Fork	UNIVERSAL	In Stock	$60
VPH-4 Optical Post Holder, No Slip, 4.0 in. Height, 0.5 in. Posts, 1/4-20	IMPERIAL	In Stock	$20
