M1 Prism Mount, 2 Knob Actuators

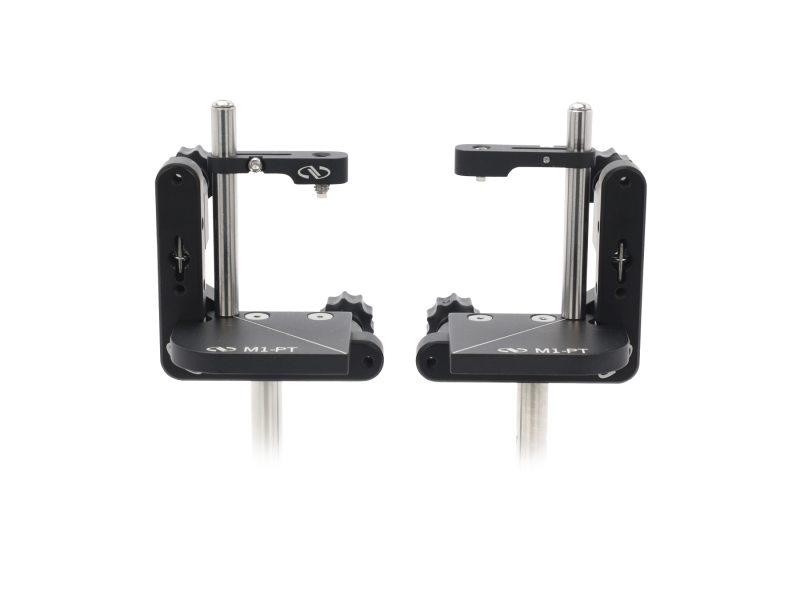

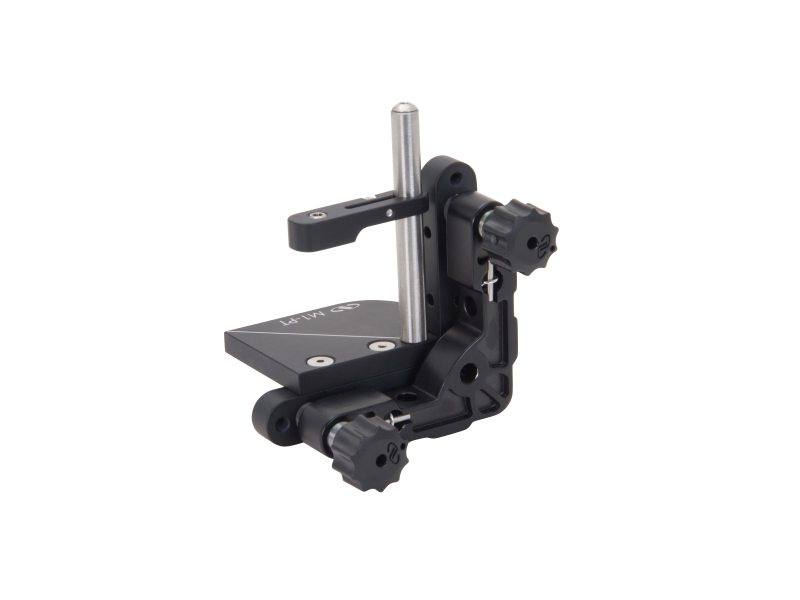

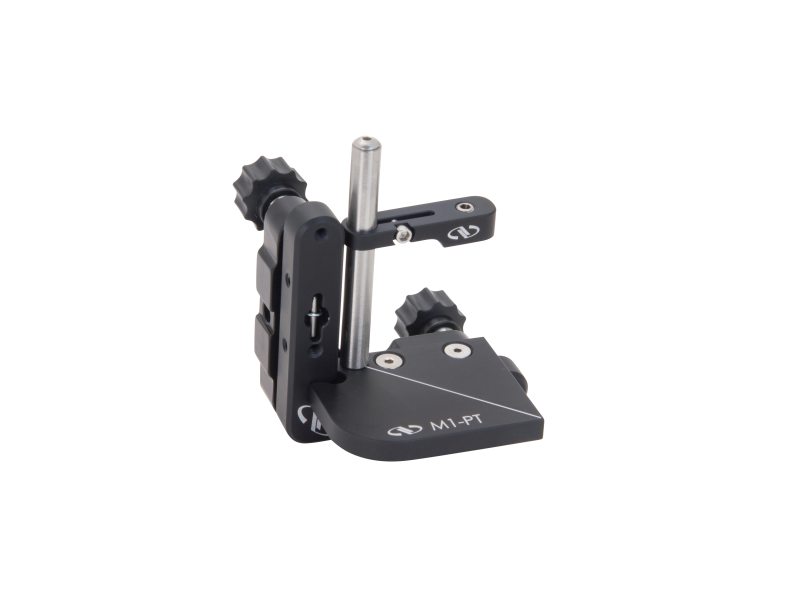

The M1-PT Prism Mount is ideal for mounting prisms and cube beam splitters. The M1-PT has a large platform for holding prisms or cube beamsplitters. The M1-PT is configurable for right- or left-handed operation. Two precision 100-TPI adjustment screws are standard providing exceptionally smooth, high-resolution adjustment.

Specifications

Technical Specs

Mechanism
Kinematic
Number of Actuators
2
Actuator Locks
No
Adjustment Screw Thread
100 TPI
Adjustments
θx, θy
Sensitivity
3.8 arc sec
Angular Range
±4°

Material
Coated Aluminum
Drive Type
Knob, non-locking
Mounting Holes
8-32 (M4) CLR
Weight
85 g

Mechanism
Kinematic
Number of Actuators
2
Actuator Locks
No
Adjustment Screw Thread
100 TPI
Adjustments
θx, θy
Sensitivity
3.8 arc sec
Angular Range
±4°

Material
Coated Aluminum
Drive Type
Knob, non-locking
Mounting Holes
8-32 (M4) CLR
Weight
85 g

Resources & Downloads

2D Product Drawings

M1-PT-353(166.4 kB, PDF)

Other

M1-PT_RoHS2021.pdf(678.5 kB, PDF)
