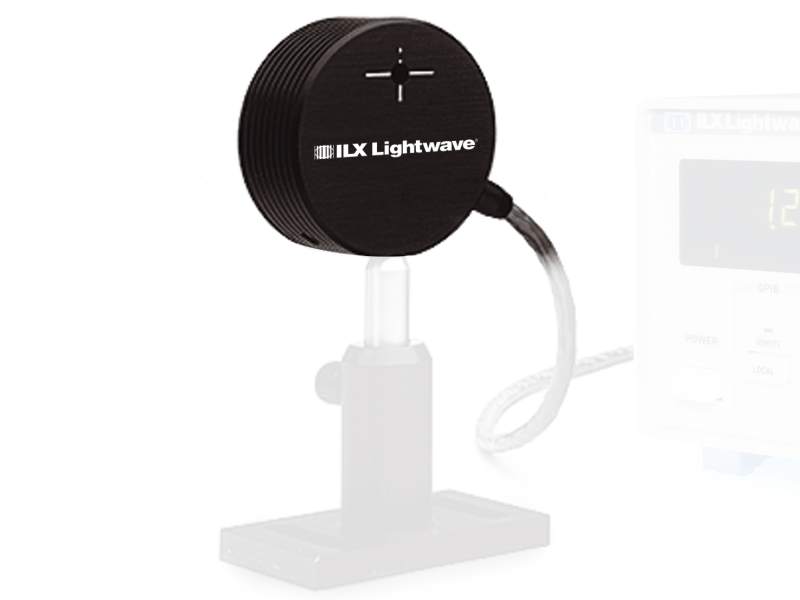

Optical Power Measurement Head, 100 mW, 800 to 1600nm, InGaAs
The OMH-6708B Optical Power Measurement Head is an integrating sphere based measurement head compatible with the OMM-6810B Optical Power Meter. The OMH-6708B is designed to measure optical power up to 100mW over a wavelength range of 800-1600nm. Accurate measurements can be taken either by free space or with a compatible fiber optic adapter. Fiber optic adapters include FC, ST, or bare fiber.
Specifications
- TypePower Measurement Head
- Detector MaterialInGaAs
- Spectral Range800 to 1600nm
- Power Range-50 to +20dBm (10nW to 100mW)
- UseOMM-6810B
- Input Port Size6mm
- Operating Temperature Range+10°C to +40°C
Resources & Downloads
Application Notes
Measuring Wide Linewidth Source with OMH-6700(361.8 kB, PDF) Calibration and Traceability of ILX Lightwave Optical Power Meters(538.4 kB, PDF)
Manuals
OMH-6708B Power Head User's Manual(988 kB, PDF)
