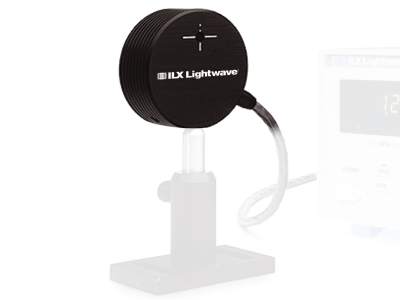

ILX Lightwave® offers a variety of measurement heads compatible with the OMM-6810B meter that cover wavelength ranges from 400 to 1650 nm for power only or power and wavelength measurement. The detector heads with both power and wavelength features have the unique capability of collecting these two measurements simultaneously without the need for physical adjustment.
- Integrating sphere-based power measurements
- Unique power and wavelength measurement for more reliable measurements
- Measurement heads cover 400-1650 nm range
- Free-space or fiber-optic measurement heads
- Requires OMM-6810B power and wavelength meter See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | OMH-6703BOptical Power Measurement Head, 1000 mW, 400 to 1100 nm, Silicon | In Stock | ||||
| OMH-6708BOptical Power Measurement Head, 100 mW, 800 to 1600nm, InGaAs | In Stock | ||||
| OMH-6727BOptical Power and Wavelength Measurement Head, 1 W, 950 to 1650 nm, InGaAs | In Stock | ||||
| OMH-6742BOptical Power and Wavelength Measurement Head, 1W, 400 to 1100nm, Silicon | In Stock | ||||
 | OMH-6790BOptical Power and Wavelength Measurement Head, 10 W, 830 to 1100 nm, Silicon | In Stock |
Specifications
| Models | | | | | | |
|---|---|---|---|---|---|---|
| Type | Power Measurement Head | Power & Wavelength Measurement Head | Power & Wavelength Measurement Head | Power Measurement Head | Power & Wavelength Measurement Head | |
| Detector Material | Silicon | Silicon | Silicon | InGaAs | InGaAs | |
| Spectral Range | 400 to 1100nm | 400 to 1100nm | 830 to 1100nm | 800 to 1600nm | 950 to 1650nm | |
| Power Range | -40 to +30dBm (100nW to 1W) | -40 to +30dBm (100nW to 1W) | -30 to +40dBm (1µW to 10W) | -50 to +20dBm (10nW to 100mW) | -40 to +30dBm (100nW to 1W) | |
| Input Port Size | 6mm | 6mm | 2.54mm fiber input | 6mm | 6mm |
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | AO122Bare Fiber Adapter Kit, For OMH-6703B, 6708B, 6727B, 6742B, and 819-WL Series | 5 Weeks | ||||
 | AO271FC Fiber Adapter, For use w/ 6703B, 6708B, 6727B, 6742B, 819-WL | In Stock | ||||
 | BF820Bare Fiber Holder, CA120 or AO120 / AO122 Fiber Adapter Mount | In Stock | ||||
 | CA100FC Fiber Adapter, For FMH Series and OMH-6790B | In Stock | ||||
 | CA120Bare Fiber Adapter Mount, For FMH Series and OMH-6790B | In Stock | ||||
 | CA150SC Fiber Adapter, For FMH Series and OMH-6790B | In Stock | ||||
 | CA20001LC Fiber Adapter, For FMH Series and OMH-6790B | In Stock | ||||
 | CA250Bare Ferrule Adapter, For FMH Series and OMH-6790B | In Stock |
Resources
Literature
OMH-6700B InGaAs Optical Power & Wavelength Measurement Head Brochure(111.9 kB, PDF) OMH 6700B Silicon Series Datasheet.pdf(1.1 MB, PDF)
Manuals
OMH-6703B Power Head User's Manual(286.5 kB, PDF) OMH-6708B Power Head User's Manual(988 kB, PDF) OMH-6727B Power Head User's Manual(1,023 kB, PDF) OMH-67X0 Power Heads User's Manual(430.3 kB, PDF)
Application Notes
Measuring Wide Linewidth Source with OMH-6700(361.8 kB, PDF)
Technical Notes
Measuring the Sensitivity of the OMH-6709B Optical Measurement Head(61 kB, PDF) Stability of the OMM-6810B Optical Multimeter and OMH-6727B InGaAs Power Wavehead(127.5 kB, PDF)
OMH-6742B Wavehead User Manual(426.7 kB, PDF)
