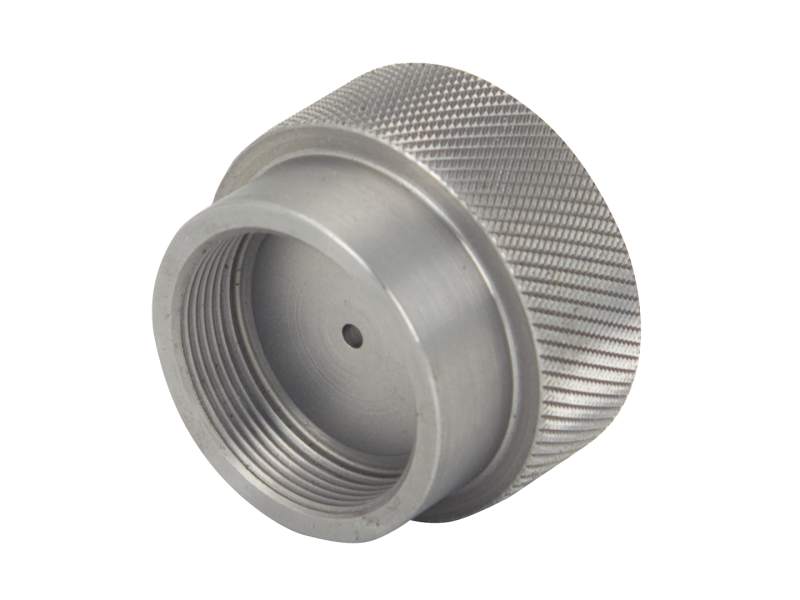

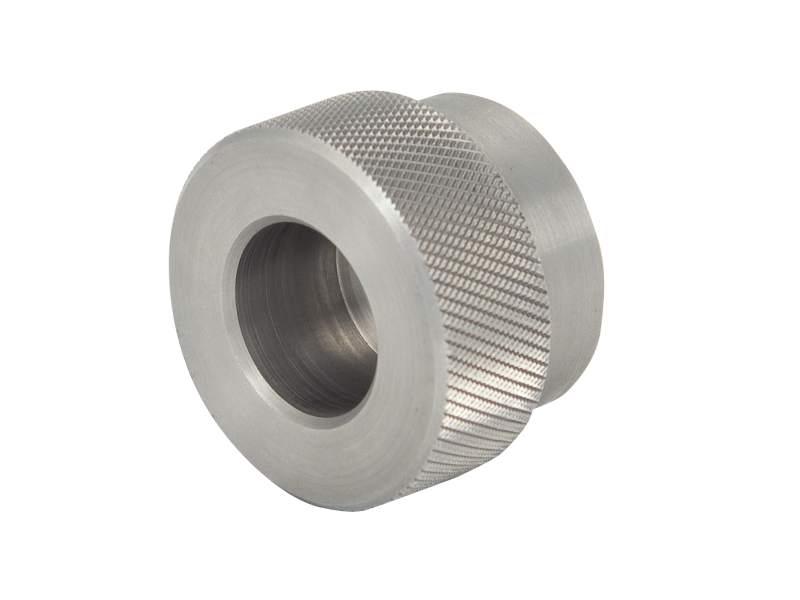

Bare Fiber Adapter Ring, For 6703B, 6708B, 6727B, 6742B, 819-WL Series

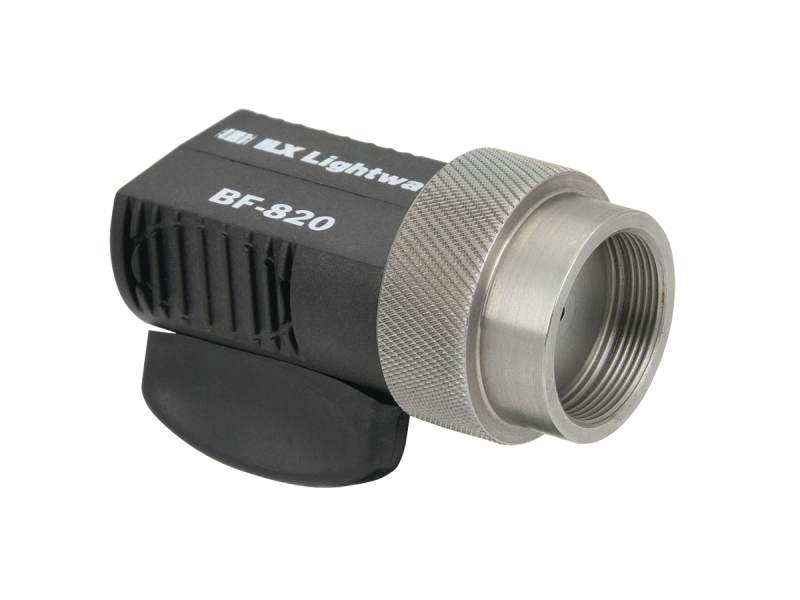

The AO120 Bare Fiber Ring Adapter is required to interface the patented ILX Lightwave^® to the following ILX Lightwave^® optical power and fiber optic power meter measurements heads: OMH-6703B, OMH-6708B, OMH-6727B, OMH-6742B, 819-SL-06-WL, 819-IG-06-WL.

Note: AO270 not included and is required for proper mounting to the OMH heads. Please see the AO122 Bare Fiber Adapter kit, which includes the AO270 and mounting screws.

Specifications

Technical Specs

Type
Bare Fiber Adapter Ring
Use
6703B, 6708B, 6727B, 6742B, 819-WL Series

Type
Bare Fiber Adapter Ring
Use
6703B, 6708B, 6727B, 6742B, 819-WL Series

Related Products

Compatible

Description	Compatibility	Price
OMH-6703BOptical Power Measurement Head, 1000 mW, 400 to 1100 nm, Silicon	UNIVERSAL	$930
OMH-6708BOptical Power Measurement Head, 100 mW, 800 to 1600nm, InGaAs	UNIVERSAL	$1,365
OMH-6727BOptical Power and Wavelength Measurement Head, 1 W, 950 to 1650 nm, InGaAs	UNIVERSAL	$3,045

Bare Fiber Adapter Ring, For 6703B, 6708B, 6727B, 6742B, 819-WL Series

Model: AO120
