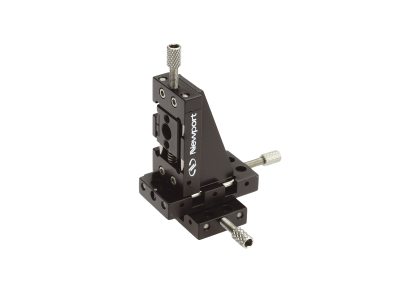

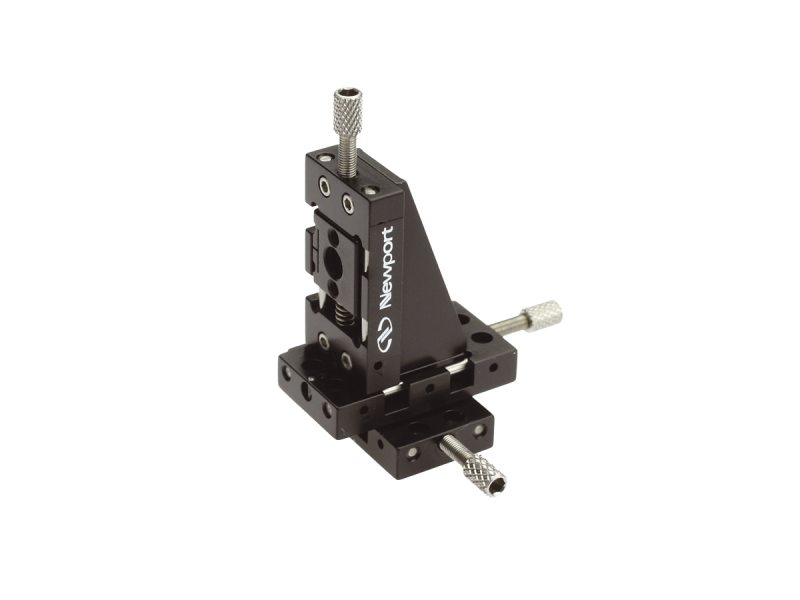

XYZ Linear Stage, Miniature. 0.125 in. Travel, 0.55 lb. Load Capacity

  • Axes of Travel
    X, Y, Z
  • Maximum Stage Travel
    3 mm
  • Centered Normal Load Capacity
    2.2 N
  • Return Force
    113–312 g
  • Recommended Actuators
    Included
  • Sensitivity
    0.5 µm
  • Angular Deviation
    <350 µrad
  • Wobble, Guaranteed
    0.01 mrad
  • Material
    Aluminum
  • Bearings
    Dowel Pin Bearing
  • Drive Location
    Center drive
  • Dimensions
    25.4 x 14.2 x 5.1 mm
  • Weight
    16 g
  • Thread Type
    2-56 and 8-32
