Pinhole Adaptor, MS-125 Series
Pinhole Adaptor, MS-125 Series

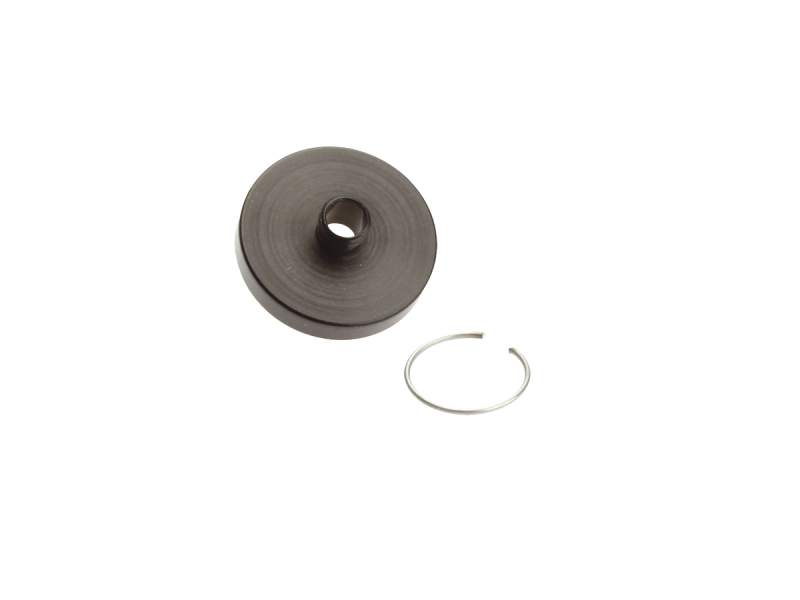

Model: MS-PA-1
In Stock
Product Series Overview
Dowel Pin Bearing with Aperture StagesThe MS-PA-1 Pinhole Adaptor is used to mount 0.375" dia. pinhole or slit substrates to the MS-125 Series miniature linear stages.
Resources & Downloads
2D Product Drawings
MS-PASER-IES-S(83 kB, PDF)
