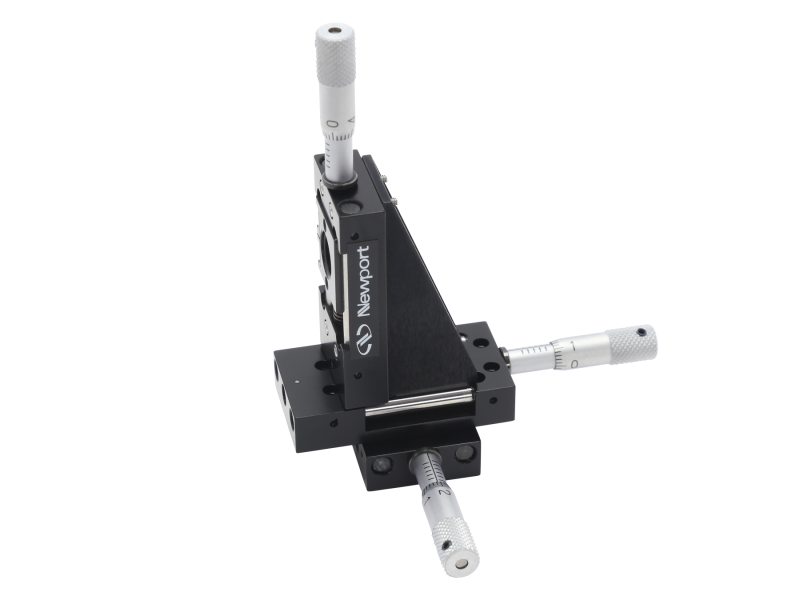

XYZ Linear Stage, Miniature, Micrometer, 0.2 in. Travel, 0.75 lb. Load

The MS-200M-XYZ Miniature Linear Stage offers unmatched performance in an extremely small package. It offers 0.2 inch travel for loads up to 0.75 lbs. It utilizes three micrometers to provide unmatched resolution in stages of this size.Ideal for applications where precision is required but space is limited. This micropositioner is provided in an XYZ configuration. Hardened precision rods are preloaded against a four corner hardened slider for smooth, wear-resistant motion. A return spring provides built-in preload to eliminate backlash. The unique carriage design eliminates wobble while providing an extremely robust stage.

Miniature Size

MS Series linear stages are great for space limited optical set-ups. MS-125 and MS-500 Series are equiped with precision 80 TPI adjustment screws. MS-200M Series are actuated by micrometers.

Wear Resistant Motion

Hardened precision rods are preloaded against a four corner hardened slider for smooth, wear-resistant motion. A return spring provides built-in preload to eliminate backlash. The unique carriage design eliminates wobble while providing an extremely robust stage. MS stages feature a precision 80 TPI adjustment screw to provide unmatched resolution in stages of this size.
