Mounting Bracket, MFM-075 or MFM-100 Flexure Optical Mounts
Mounting Bracket, MFM-075 or MFM-100 Flexure Optical Mounts
Model: MFM-B
Product Series Overview

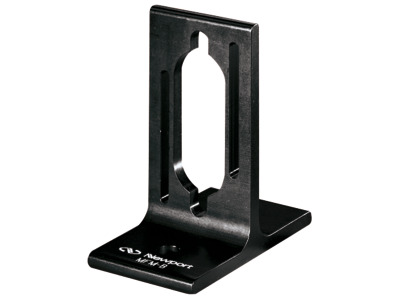

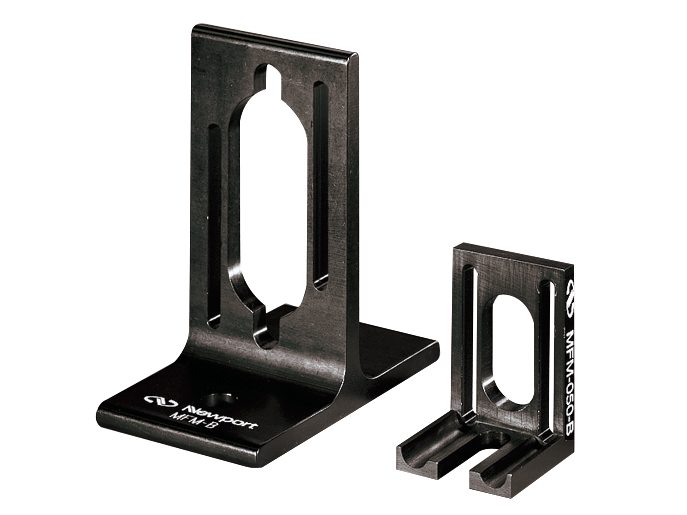

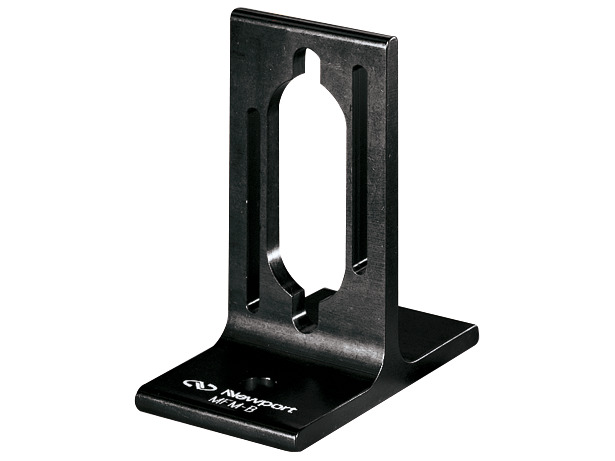

Mirror Mount Mounting AdaptersThe MFM-B Mounting Bracket provides variable optical axis height and solid attachment to surfaces. They allow angular adjustment to be made from either side, so you never obstruct the beam path during alignment. The MFM-B positions the optical axis height from 1 to 2 inch (25.4 to 50.8 mm). Compatible with MFM-075 and MFM-100
Resources & Downloads
2D Product Drawings
MFM-B-S(96.8 kB, PDF)
Other
MFM-B_RoHS2021.pdf(679.5 kB, PDF)
