Mounting Bracket, MFM-050 Flexure Industrial Optical Mount
Mounting Bracket, MFM-050 Flexure Industrial Optical Mount

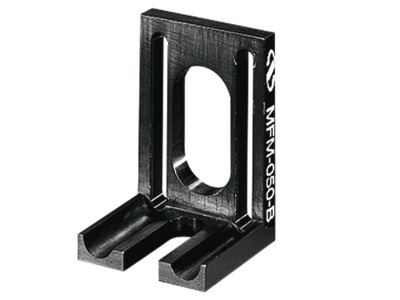

Model: MFM-050-B
Product Series Overview

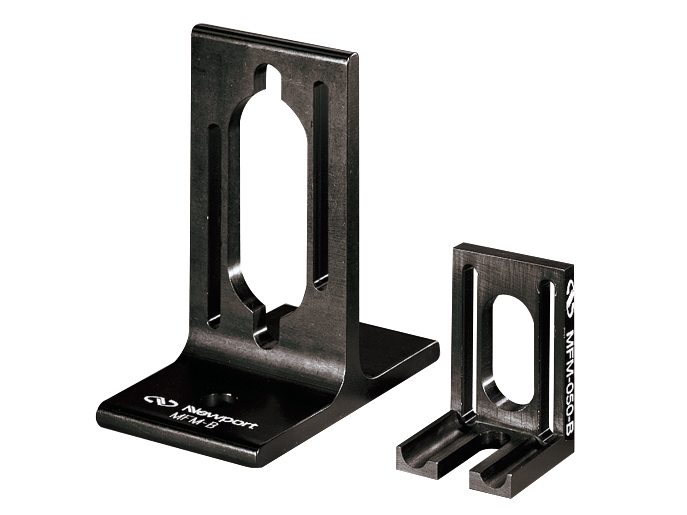

Mirror Mount Mounting AdaptersThe MFM-050-B Mounting Bracket provides variable optical axis height and solid attachment to surfaces. They allow angular adjustment to be made from either side, so you never obstruct the beam path during alignment. The MFM-050-B positions the optical axis height from 0.5 to 1 inch (12.7 to 25.4 mm). Compatible with MFM-050.
Resources & Downloads
2D Product Drawings
MFM-050b-S(85.6 kB, PDF)
Other
MFM-050-B RoHS Certificate(277.8 kB, PDF) MFM-050-B_RoHS2021.pdf(681.4 kB, PDF)
