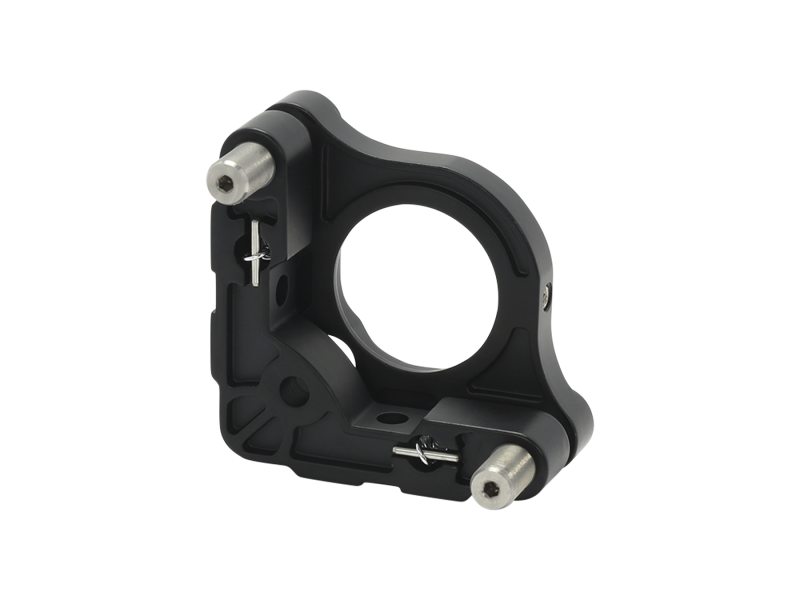

Mirror Mount, OEM Standard, 1.0 in., 2 Hex Actuators

The M1-H Mirror Mount is an economically priced mirror mount for OEM applications . Based on the original M1 design, it has an aperture for 1 inch (25.4 mm) diameter optics as well as two precision 100-TPI hex key adjustment screws for exceptionally smooth, high-resolution adjustment.

Affordable Mounts for Every Application

M Series mounts are the industry's lowest cost mount. They hold the most frequently used optic sizes and are available in a host of configurations including Full Aperture, Hex-Driven, Clear Edge, CenterPoint™, Side-Clamp, Platform, and V-Groove versions.

Adhesive Bonding

Our extensive laboratory testing has shown that epoxying the optic in place provides optimal performance and stability for industrial application. All M05 mirror mounts are designed with epoxy wells in the aperture to facilitate permanently bonding the mirror to the mount.

Alignment Pin Holes

These M05 mounts feature alignment pin holes (shown in red) on the bottom (base) of the mount to enable keying of the position and orientation by means of dowel pins when directly mounting. (Note: Dowel pins not included with mount.) This is especially helpful in OEM applications.

Superior Adjustability

All M-series mirror mounts have an angular range of ±4° with the equipped 100-TPI adjustment screws that provide a 25% improvement in adjustment sensitivity over competing mounts having 80-TPI adjusters. Better adjustability means faster, easier alignment.

Specifications

Technical Specs

Type
Standard
Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
2
Actuator Drive
Allen-Key
Actuator Locks
No
Adjustment Screw Thread
100 TPI
Adjustments
θx, θy
Sensitivity
3.8 arc sec
Angular Range
±4°

Actuator Orientation
Right-handed
Optic Loading
Front
Material
Aluminum
Drive Type
Allen-Key, non-locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
Optic Mounting
Set Screw
Weight
53 g

Type
Standard
Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
2
Actuator Drive
Allen-Key
Actuator Locks
No
Adjustment Screw Thread
100 TPI
Adjustments
θx, θy
Sensitivity
3.8 arc sec
Angular Range
±4°

Actuator Orientation
Right-handed
Optic Loading
Front
Material
Aluminum
Drive Type
Allen-Key, non-locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
Optic Mounting
Set Screw
Weight
53 g

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

M1-H(140.1 kB, PDF)

Other

M1-H RoHS Certificate(278.7 kB, PDF)
M1-H_RoHS2021.pdf(682.2 kB, PDF)
