Mirror Mount, Pint-Sized, Corner, 1.0 in., 3 Knobs

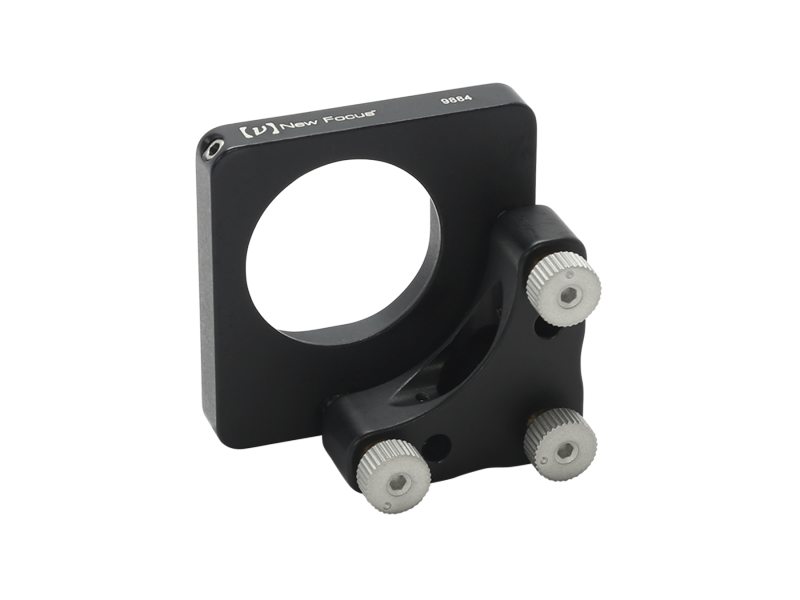

The 9884 Pint Sized Corner Mirror Mount holds 1.0 in. diameter optics, and is only half the size of our Classic mounts, yet provides the same high level of performance you've come to count on. With a 1.0 in. beam height, and 8-32 (M4) mounting holes, this anodized-aluminum mount is completely compatible with all the other mounts, posts, and pedestals you already own.

Specifications

Technical Specs

Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
3
Actuator Locks
No
Adjustment Screw Thread
80 TPI
Adjustments
z, θx, θy
Sensitivity
8.8 arc sec
Angular Range
±4°

Optic Loading
Front
Material
Anodized Aluminum
Drive Type
Knob, non-locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm

Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
3
Actuator Locks
No
Adjustment Screw Thread
80 TPI
Adjustments
z, θx, θy
Sensitivity
8.8 arc sec
Angular Range
±4°

Optic Loading
Front
Material
Anodized Aluminum
Drive Type
Knob, non-locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm

Resources & Downloads

2D Product Drawings

9884d-Drawing(91.8 kB, PDF)
