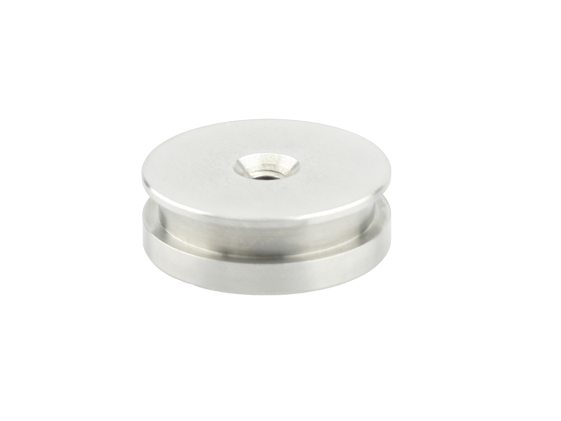

Pedestal Mounting Base, 38.1 mm Diameter Posts, M6 Thread
Pedestal Mounting Base, 38.1 mm Diameter Posts, M6 Thread
Model: M-SR-B
Product Series Overview
1.5 in. Optical Rod BasesThe M-SR-B Non-magnetic Pedestal Base is used when pedestal mounting is needed but without the magnetic base. The M-SR-B pedestal base can be combined with the M-SR-E extension posts and SP-S spacers for various height applications. The SR-F, all-stainless steel clamping fork, is used to clamp the M-SR-B on to an optical table.
Resources & Downloads
2D Product Drawings
SR-B-303(69.3 kB, PDF)
Other
M-SR-B RoHS Certificate(276.8 kB, PDF) M-SR-B_RoHS2021.pdf(677.3 kB, PDF)
