Mirror Mount Adaptor, 38.1 mm Diameter Posts and Pillars, M4 and M6
Mirror Mount Adaptor, 38.1 mm Diameter Posts and Pillars, M4 and M6
Model: M-SR-ADP
Product Series Overview

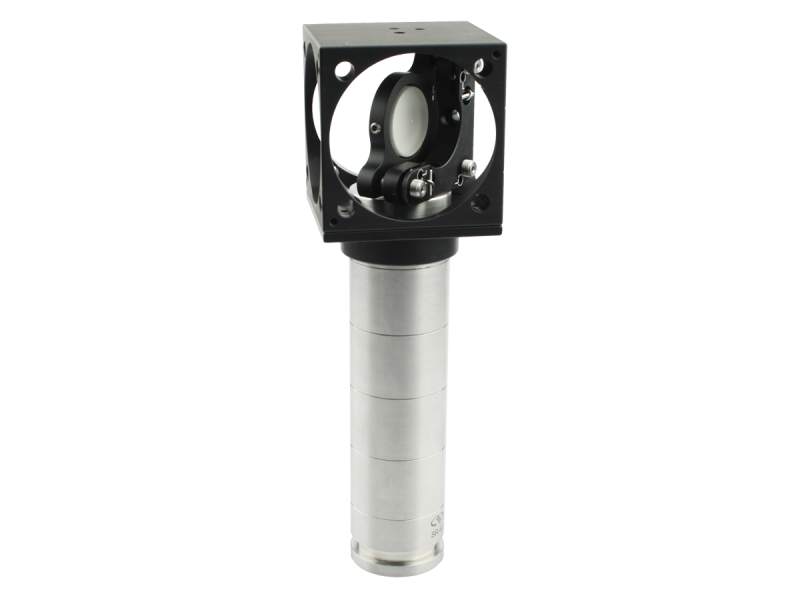

1.5 in. Post Mirror Mount AdaptersThe M-SR-ADP mounting adaptor allows rod-mounting of components, like mirror mounts, at non-standard heights. It is required for mount any of the SN100 or SS100 Suprema® mirror mounts. With both a counterbored thru hole and threaded mounting holes this adaptor mounts threaded or thru-hole mounts. The scribed line around the diameter of the adaptors to set height when being used with the Q-XE-RA-1 to center optical axis height of a mirror mount being used within the Q-OC-1 Cube.
Resources & Downloads
2D Product Drawings
SR-ADP-302(112.5 kB, PDF)
Other
M-SR-ADP RoHS Certificate(277.7 kB, PDF) M-SR-ADP_RoHS2021.pdf(679.4 kB, PDF)
