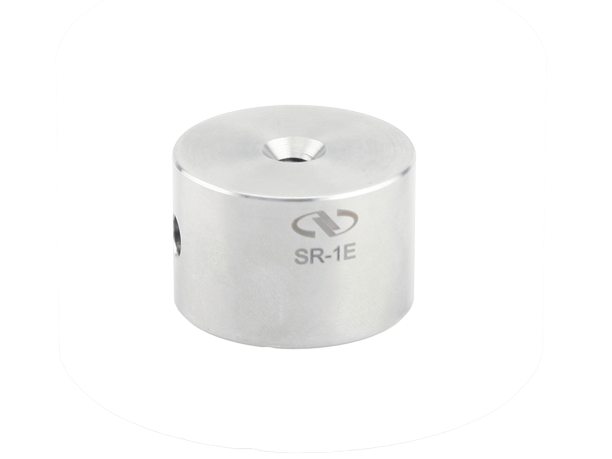

Optical Post, 25.4 mm Height, 38.1 mm Diameter, M6 Thread
Optical Post, 25.4 mm Height, 38.1 mm Diameter, M6 Thread
Model: M-SR-1E
Product Series Overview
1.5 in. Post Extenders and SpacersThe M-SR-1E Optical Pedestal Pillar Extension is 38.1 mm diameter and is used to extend height of an SR-Z pedestal pillar by 25.4 mm. It has M6 threaded holes at each end and a cross-drilled hole to assist in tightening. It can be combined with a SR-B pedestal base for a non-magnetic pedestal base configuration.
Resources & Downloads
2D Product Drawings
SR-E(94.9 kB, PDF)
Other
M-SR-1E RoHS Certificate(277.6 kB, PDF) M-SR-1E_RoHS2021.pdf(680.2 kB, PDF)
