Optical Pedestal, Magnetic Base, 50.8 mm Height, 12.7 mm Diameter, M4 Thread
Optical Pedestal, Magnetic Base, 50.8 mm Height, 12.7 mm Diameter, M4 Thread
Model: M-SP-2Z
Product Series Overview

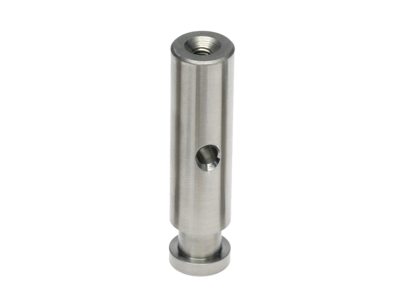

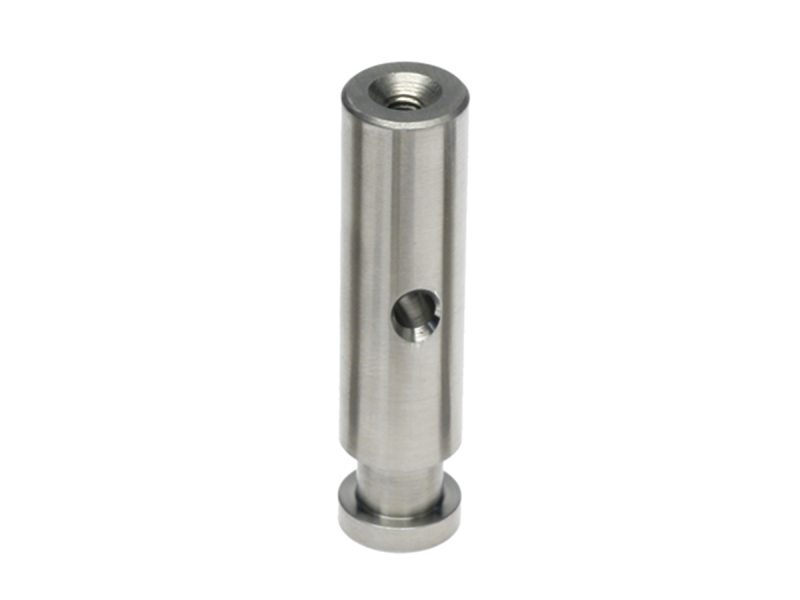

0.5 in. Magnetic Base Optical Pedestal PillarsM-SP-2Z Precision Ground, Stainless Steel Mini Pedestal Post is 12.7 mm diameter with a length of 50.8 mm. It features an M4 tapped hole on the top and a magnet located in the base to steady the pedestal prior to clamping it to an optical table by a SP-F clamping fork. They are also compatible with 0.5 in. Post Holders for height adjustment.
Resources & Downloads
2D Product Drawings
SP-Z(97.9 kB, PDF)
Other
M-SP-2Z RoHS Certificate(279.5 kB, PDF) M-SP-2Z_RoHS2021.pdf(689.7 kB, PDF)
