Optical Post Clamp, Right-Angle, 0.5 in. Diameter Optical Posts
Optical Post Clamp, Right-Angle, 0.5 in. Diameter Optical Posts
Model: CA-1

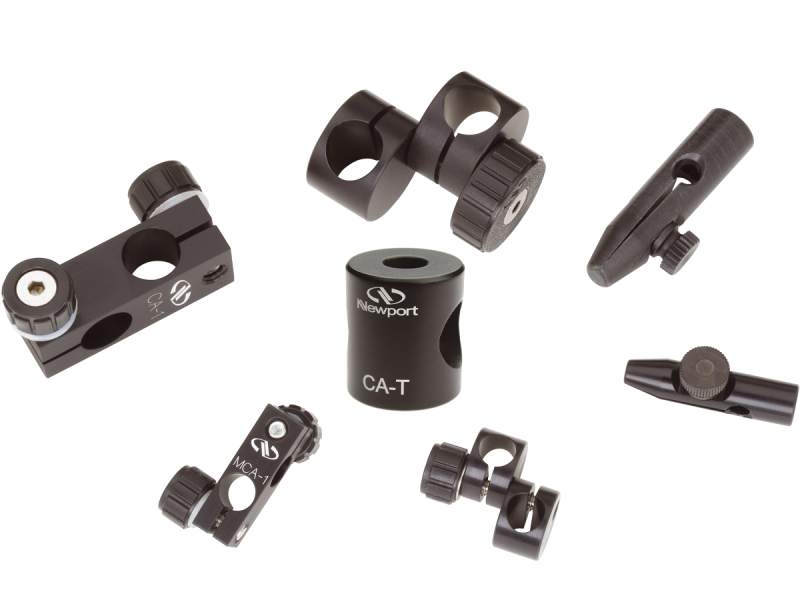

Product Series Overview

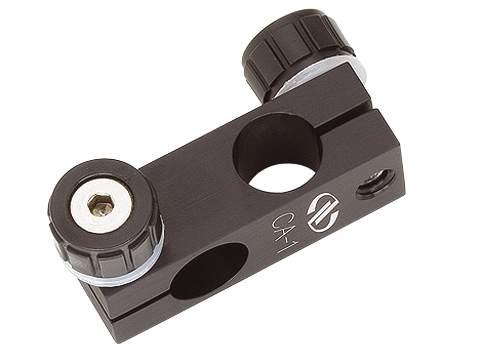

Post-Joining Angle ClampsThe CA-1 Right-Angle Post Clamp mounts two SP Series 1/2 in. (12.7 mm) posts at 90° to each other. The clamping screws permit fast, secure post mounting with only moderate finger pressure. 1/4-20 (M6)Thread
Resources & Downloads
2D Product Drawings
CA-1-ART-25 per-S(94.5 kB, PDF)
Other
CA-1 RoHS Certificate(277.3 kB, PDF) CA-1_RoHS2021.pdf(679 kB, PDF)
