Optical Pedestal, Magnetic Base, 76.2 mm Height, 12.7 mm Diameter, M4 Thread
Optical Pedestal, Magnetic Base, 76.2 mm Height, 12.7 mm Diameter, M4 Thread
Model: M-SP-3Z
Product Series Overview

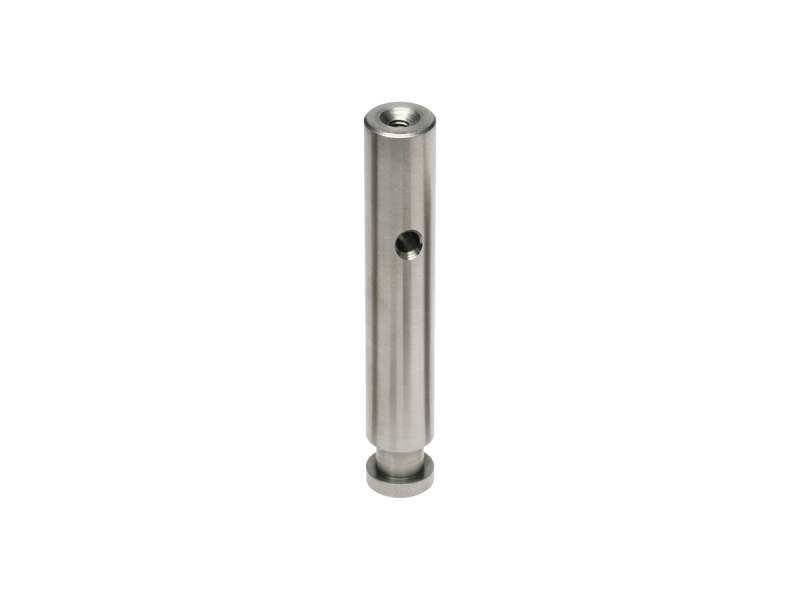

0.5 in. Magnetic Base Optical Pedestal PillarsM-SP-3Z Precision Ground, Stainless Steel Mini Pedestal Post is 12.7 mm diameter with a length of 76.2 mm. It features an M4 tapped hole on the top and a magnet located in the base to steady the pedestal prior to clamping it to an optical table by a SP-F clamping fork. They are also compatible with 0.5 in. Post Holders for height adjustment.
Resources & Downloads
2D Product Drawings
SP-Z(97.9 kB, PDF)
Other
M-SP-3Z RoHS Certificate(279.3 kB, PDF) M-SP-3Z_RoHS2021.pdf(688.2 kB, PDF)
