Ball & Socket Stage ,±25° Tilt,360° Rotation, 86x86mm Platform, Metric

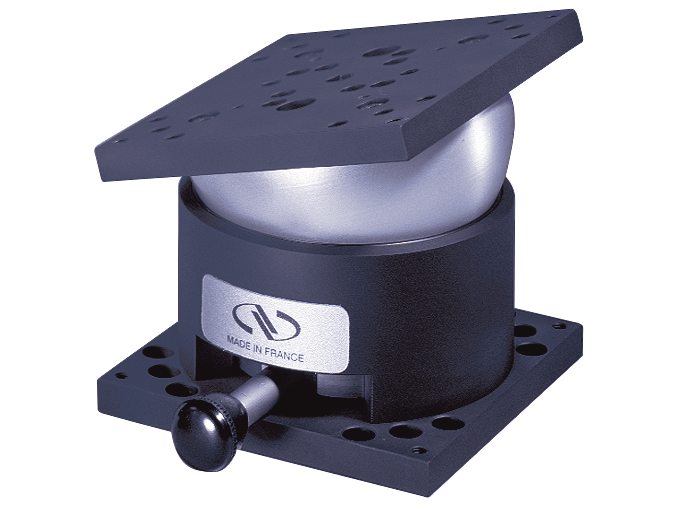

The M-RN-86 Ball and Socket Stage provides up to ±25° of tilt in any direction and a full 360° of rotation of a 86 x 86 mm platform. It is practical for rapid coarse alignment with full freedom of angular rotation. A simple clutch lever locks and unlocks the rotation of the platform in any position. These tilt/rotation stages are useful for positioning video cameras, detectors, lighting systems, and targets. The mounting-hole pattern for the platform and base of M-RN-86 is the same as the Adapter Plate. The load capacity for the M–RN–86 is 25 kg (55 lbs).

360° Quick Positioning and Fast Locking

These tilt/rotation stages are useful for manually positioning video cameras, detectors, lighting systems, or targets and then locking them in place. The ball and socket design enables a full 360° rotation range. A simple clutch lever locks and unlocks the rotation of the platform in any position.

Compatible with PI Series Adapter Plates

The mounting-hole pattern for the platform of M-RN-50 is the same as the Adapter Plate. The mounting-hole pattern for the platform and base of M-RN-86 is the same as the Adapter Plate. The load capacity for the M–RN–86 is 25 kg (55 lbs), and the load capacity for the M-RN-50 is 15 kg (33 lbs).

Specifications

Technical Specs

Tilt
±25°
Tip
±25°
Rotation
360°
Load Capacity
25 kg
Platform Size
86 x 86 mm

Thread Type
M3 and M4
Weight
2.4 lbs

Tilt
±25°
Tip
±25°
Rotation
360°
Load Capacity
25 kg
Platform Size
86 x 86 mm

Thread Type
M3 and M4
Weight
2.4 lbs

Resources & Downloads

2D Product Drawings

R86-S(140.1 kB, PDF)
PI86.01-S(133.7 kB, PDF)
