Alignment Target, Post Mount, M4, A-Line

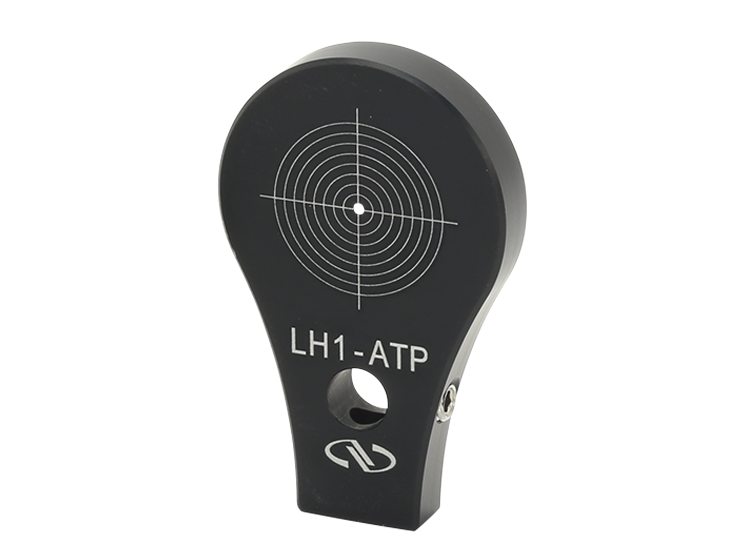

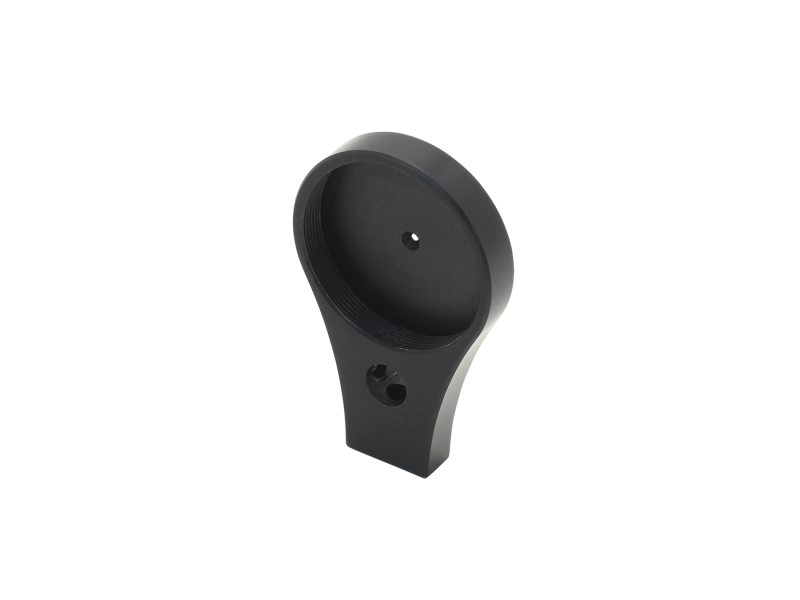

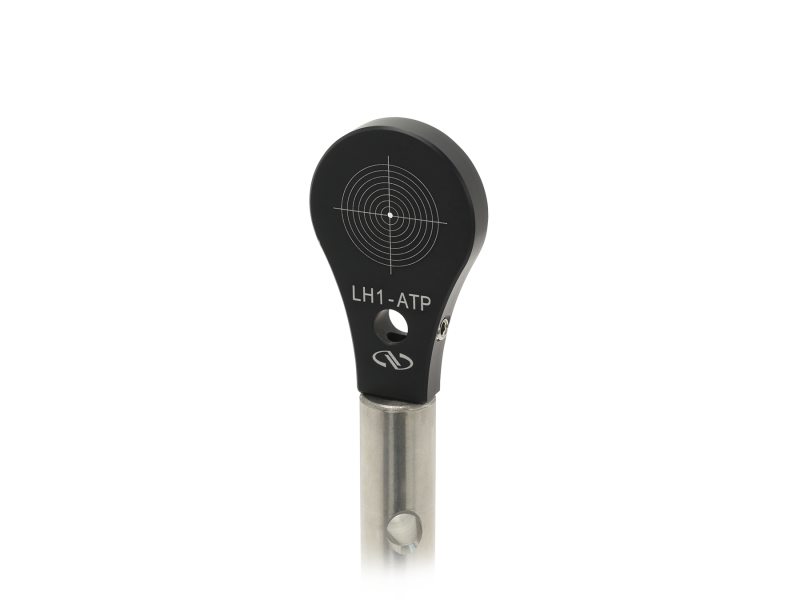

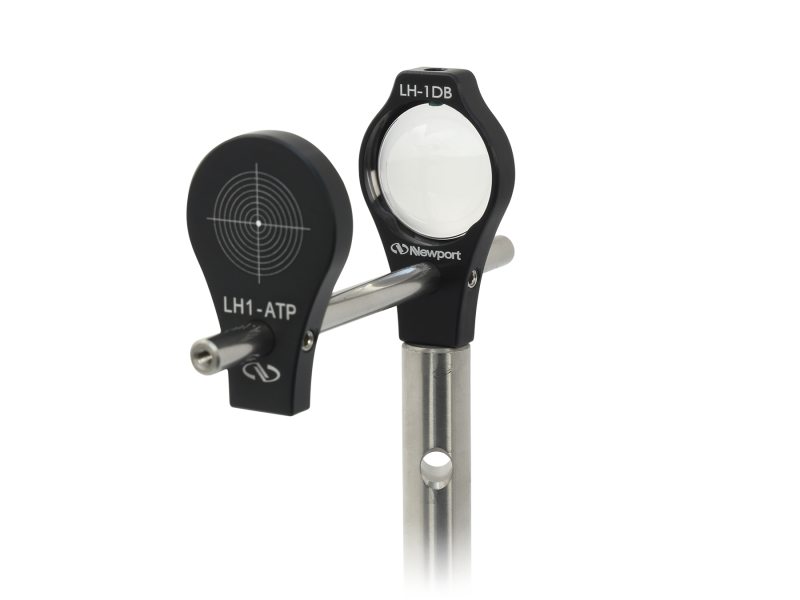

The post mount alignment target is a convenient tool for aligning visible beams. Made from anodized aluminum, it provides a through hole at the center with clear markings with graduations on both the X and Y axes. It can be post mounted to a desired height using our standard optical pedestals and spacers, and also offers a through hole for use with our A-Line optics system.
