Lens Mount, Self-Centering, 3.2-27 mm Diameter
Lens Mount, Self-Centering, 3.2-27 mm Diameter
Model: M-LCM-1
Product Series Overview

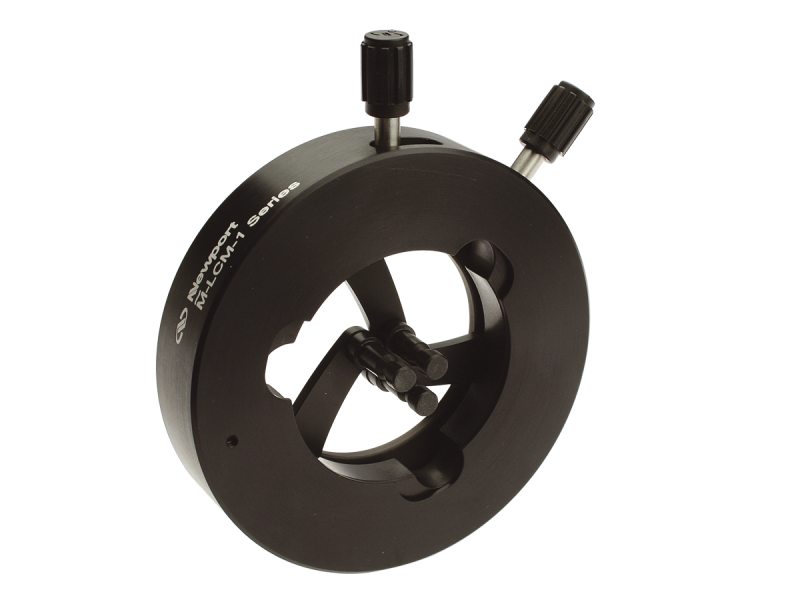

Spring-Loaded Self-Centering Variable Size Lens MountsThe M-LCM-1 Self-Centering Lens Mount reliably centers and securely holds 3.2 to 27 mm diameter round optics and cylindrical objects. It is particularly useful when different-sized lenses must be interchanged while keeping the optical axis height constant. Model M-LCM-1 accommodates optics up to 25.4 mm diameter and has metric threads. It is oversized to provide easy finger access for inserting and removing optics. The optic is held by non-marring Delrin rods that have modified V-groove tips to grip the edges of thin lenses and flat shoulders for registration of thicker optics. These lens mounts are based on a familiar coaxial-ring concept designed so the mechanism is completely enclosed for ruggedness. A conveniently positioned actuator lever rotates a spring-loaded inner ring, which pivots the three optic support rods radially to provide automatic centration. LCM Series Mounts can mount on SP Series Posts for easy adjustment of vertical height and azimuth angle. Alternatively, pedestal posts provide a selection of convenient, fixed optical axis heights and direct tie-down to tables and breadboards.
Resources & Downloads
2D Product Drawings
LCM-1ART-25perc-S(83.9 kB, PDF)
Other
M-LCM-1 RoHS Certificate(279.3 kB, PDF)
