Double-Jointed Utility Post, 12.7 mm Post, M4 and M6 Thread
Double-Jointed Utility Post, 12.7 mm Post, M4 and M6 Thread
Model: M-DJP-1
Product Series Overview

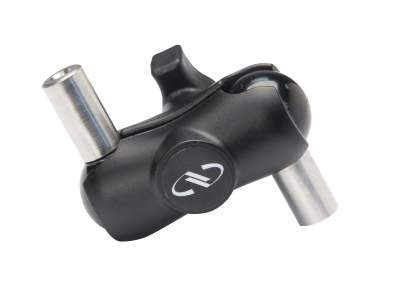

Double Jointed Optical Post HeadsThe M-DJP-1, Double-Jointed Utility Post, made with genuine parts from RAM Mounts®, allows positioning flexibility for post mounting of various mechanical and optical devices. It has two ball-and-socket arms, each having 180° rotation, to provide a full 360° of angular positioning. A single locking knob secures the double-jointed post in position. The M-DJP-1 has the same mounting thread configuration as Newport's standard SP-series 12.7 mm diameter posts, i.e., M4 on one end and M6 on the other. This enables it to be used with all of the 12.7 mm post accessories such as post holders, clamps, and spacers. The M-DJP-1 is an excellent, low-cost accessory for the lab for those times when you need non-standard mounting options for your research or production setup.
Resources & Downloads
2D Product Drawings
DJP-1 Drawing(106.1 kB, PDF)
Other
M-DJP-1 RoHS Certificate(280.7 kB, PDF)
