Adjustable Optical Post Head, Ball and Socket, M6 Thread
Adjustable Optical Post Head, Ball and Socket, M6 Thread
Model: M-BSJ2
Product Series Overview

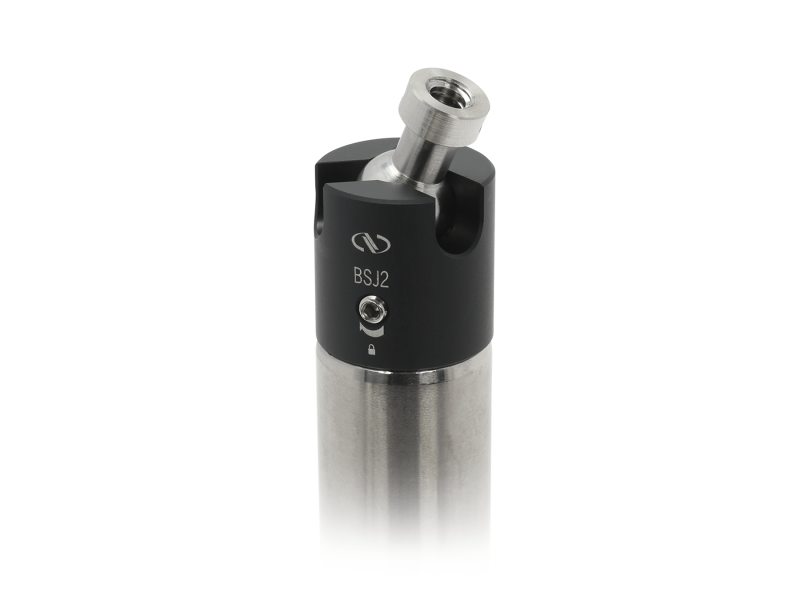

Ball and Socket Adjustable Optical Post HeadsThe M-BSJ2 features a ball and socket mechanism that allows a large range of angular adjustment for optical component mounts. The single locking set screw securely locks the mount in place after alignment. Matching M6 threaded holes in the base and stem for mounting posts and optical component mounts.
Resources & Downloads
2D Product Drawings
BSJ2 SERIES.pdf(57.3 kB, PDF)
Other
MKS RoHS2-2021 Certificate BSJ Series.pdf(683.8 kB, PDF)
