Adjustable Optical Post Head, Ball and Socket, M4 Thread
Adjustable Optical Post Head, Ball and Socket, M4 Thread
Model: M-BSJ1
Product Series Overview

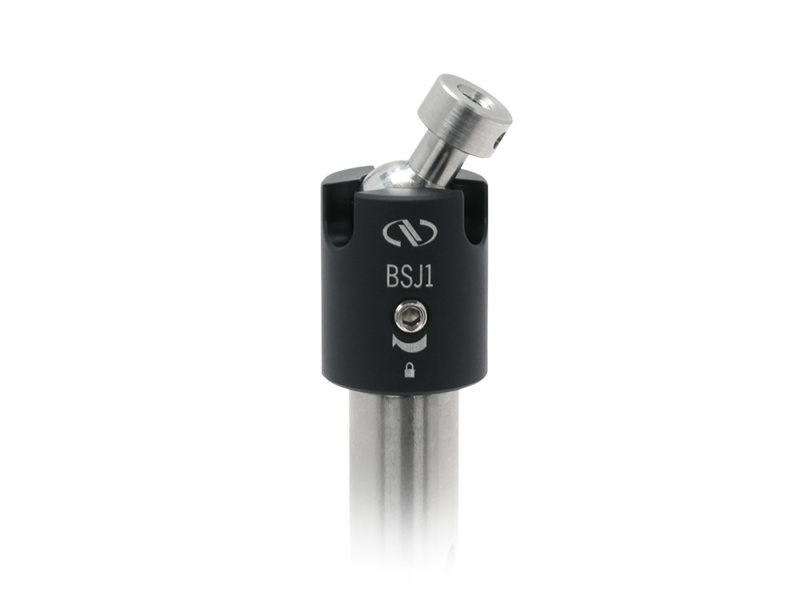

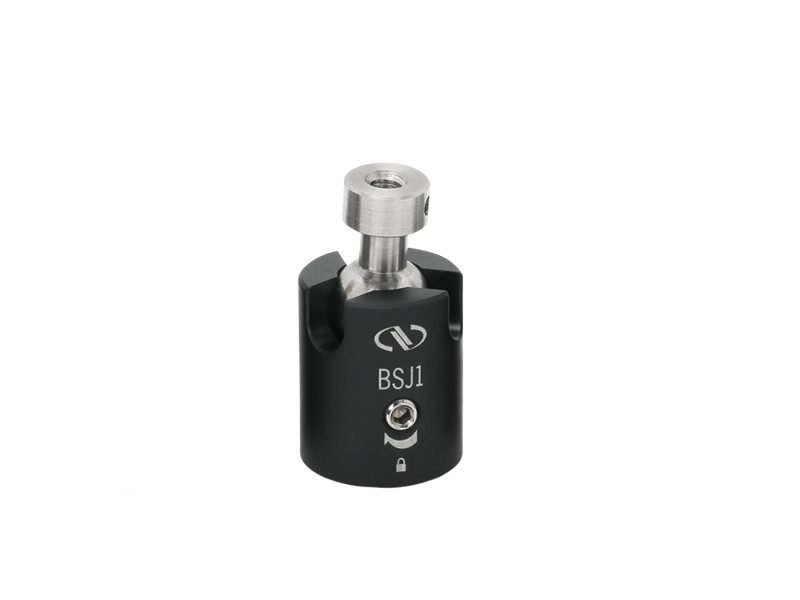

Ball and Socket Adjustable Optical Post HeadsThe M-BSJ1 features a ball and socket mechanism that allows a large range of angular adjustment for optical component mounts. The single locking set screw securely locks the mount in place after alignment. Matching M4 threaded holes in the base and stem for mounting posts and optical component mounts.
Specifications
- Thread TypeM4
- Diameter19.1 mm
- Pack Quantity1
