L-Shaped Bracket, Slot Length 46mm, M-466A
L-Shaped Bracket, Slot Length 46mm, M-466A
Model: M-466A-149
Product Series Overview

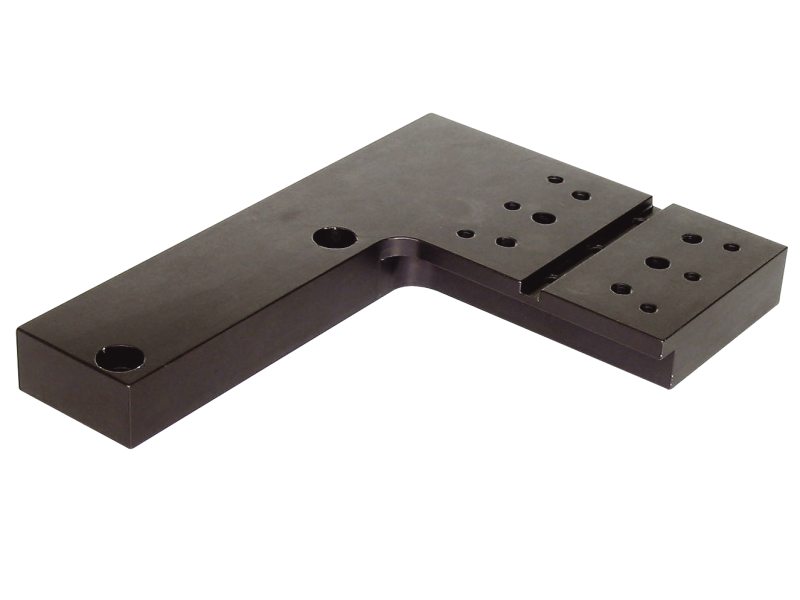

Flexure Fiber Alignment Stage AccessoriesThe M-466A-149 L Shaped Metric Bracket has a 46 mm length slot and M4 tapped holes. It is used for mounting accessories along Y axis of M-466A flexure stages. Includes M-466A-154 clamp set.
Resources & Downloads
2D Product Drawings
466A-149-264(215 kB, PDF)
