Fixed Bracket, Small, 20 mm Slot Length, M-466A

Flexure Fiber Alignment Stage Accessories

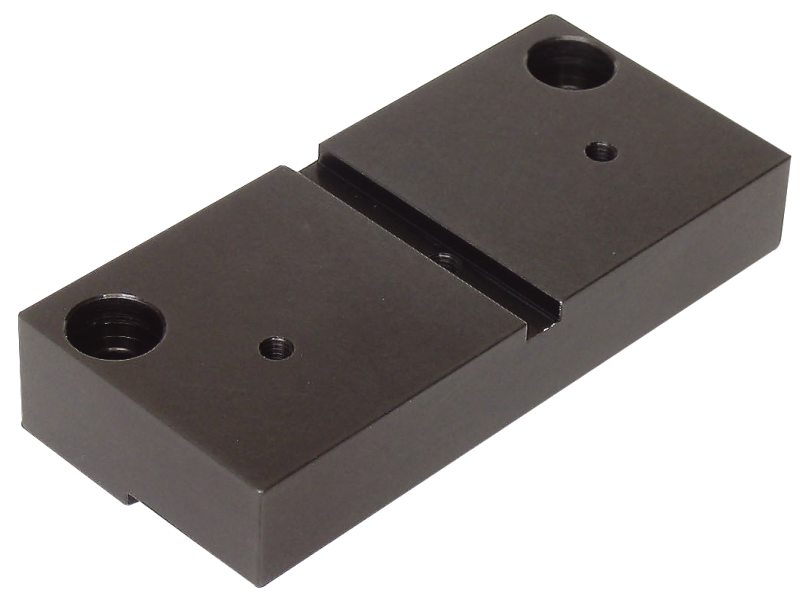

TheM-466A-148 Small Metric Fixed Bracket has a 20 mm length slot and M4 tapped holes. It is used for mounting accessories along X axis of M-466A flexure stages. Includes M-466A-154 clamp set.

Specifications

Technical Specs

Thread Type
M4
Type
Small Fixed Bracket

Thread Type
M4
Type
Small Fixed Bracket

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

466A-148-263(210.6 kB, PDF)
